Pros & Cons
- ✚Detection range of up to 7 metres, day and night
- ✚Wide viewing angle of 170 degrees
- ✚Easily linkable actions via Smart Life app
- ✚Long battery life of up to 24 months
Reliable Smart Zigbee motion sensor with a reach of up to 7 meters

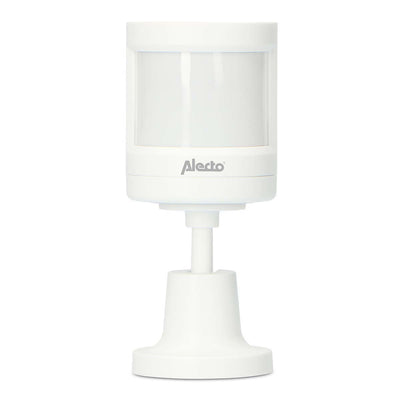

- Alecto SMART-MOTION10 Smart Zigbee motion-sensor
- The sensors send a signal upon movement
- Set-up an action/reaction by linking to other Alecto SMART-products (lights on/off if activity/no activity in a room)
- Link to a Zigbee gateway (SMART-BRIDGE10)

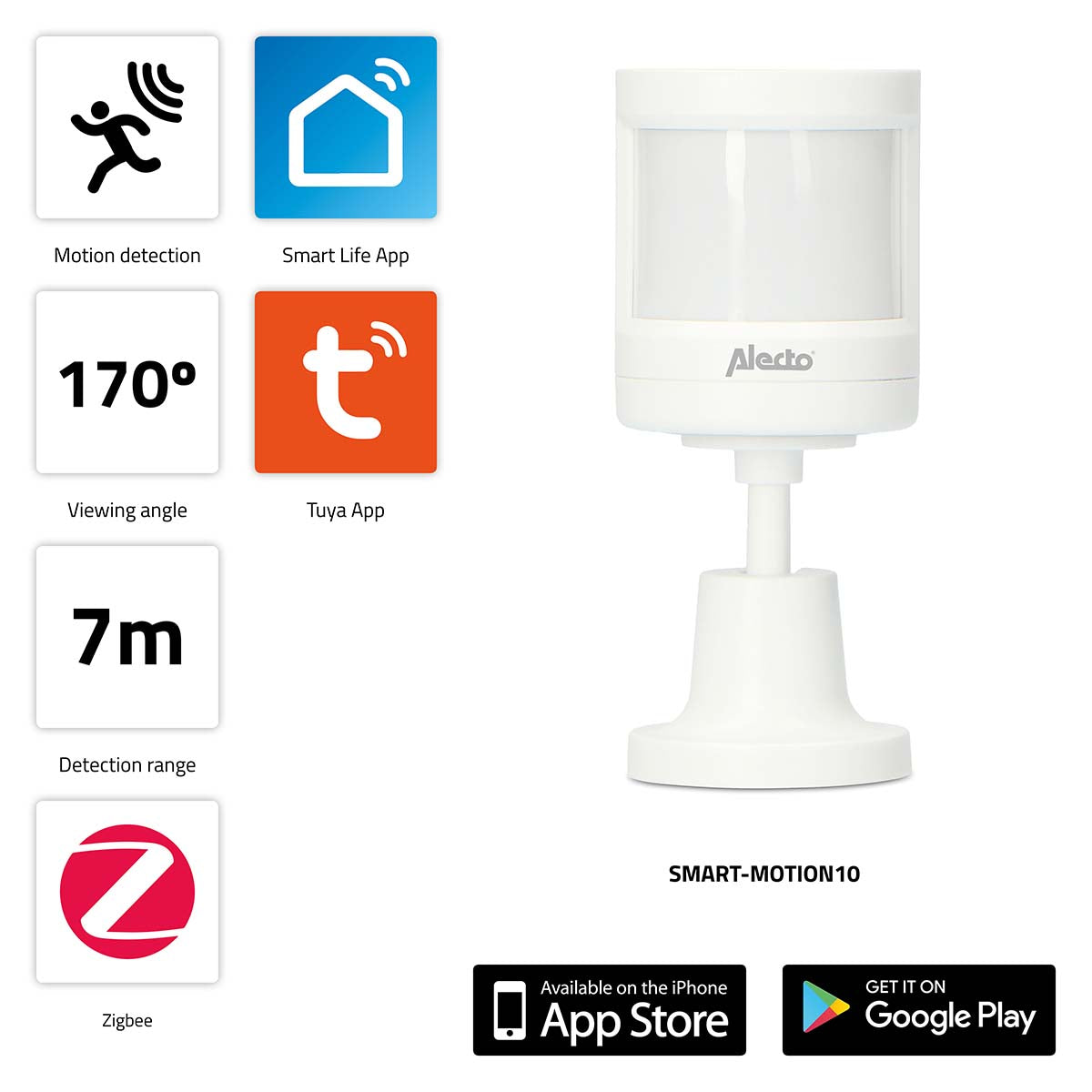

- Viewing angle of 170 degrees
- Detection range of up to 7 metres (day & night)

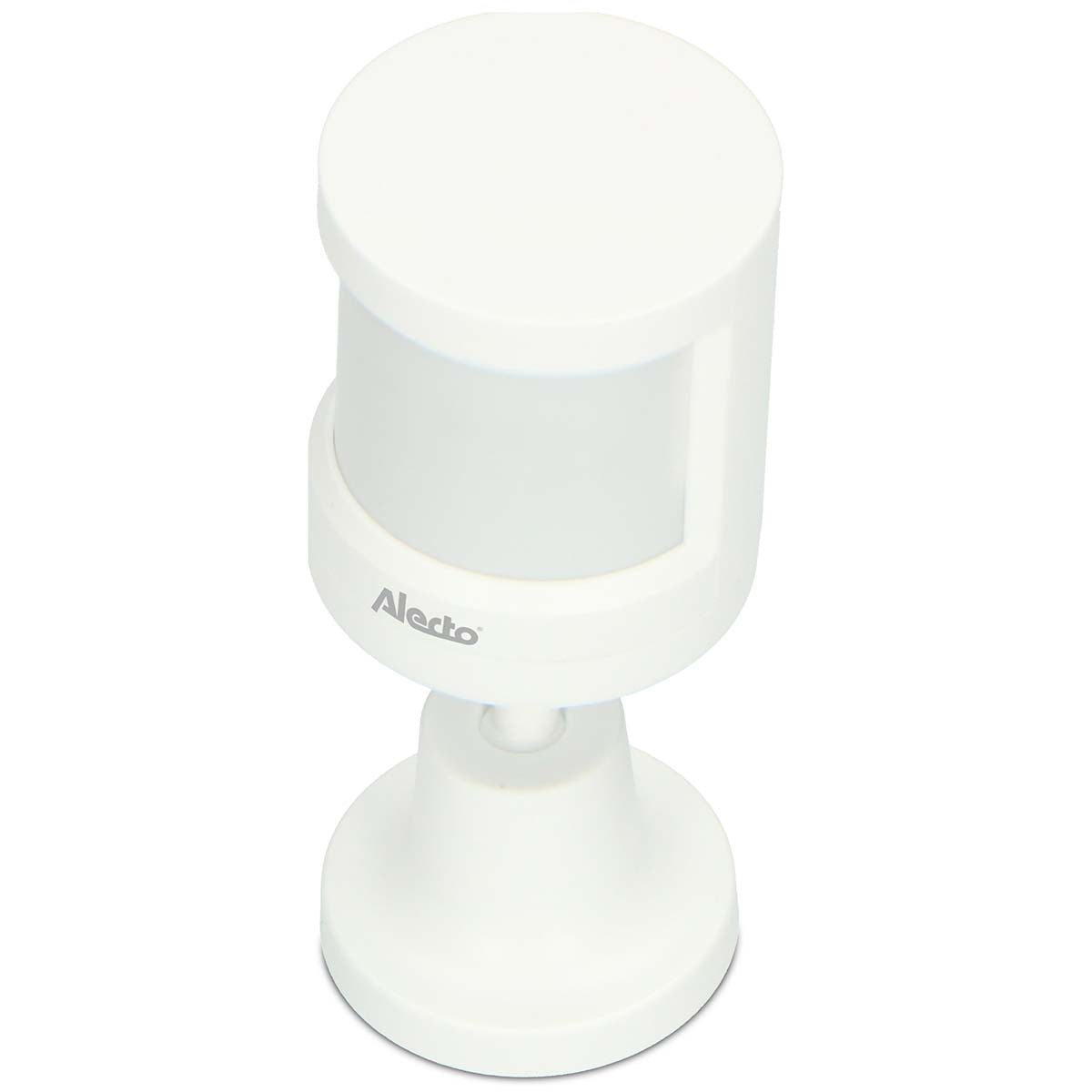

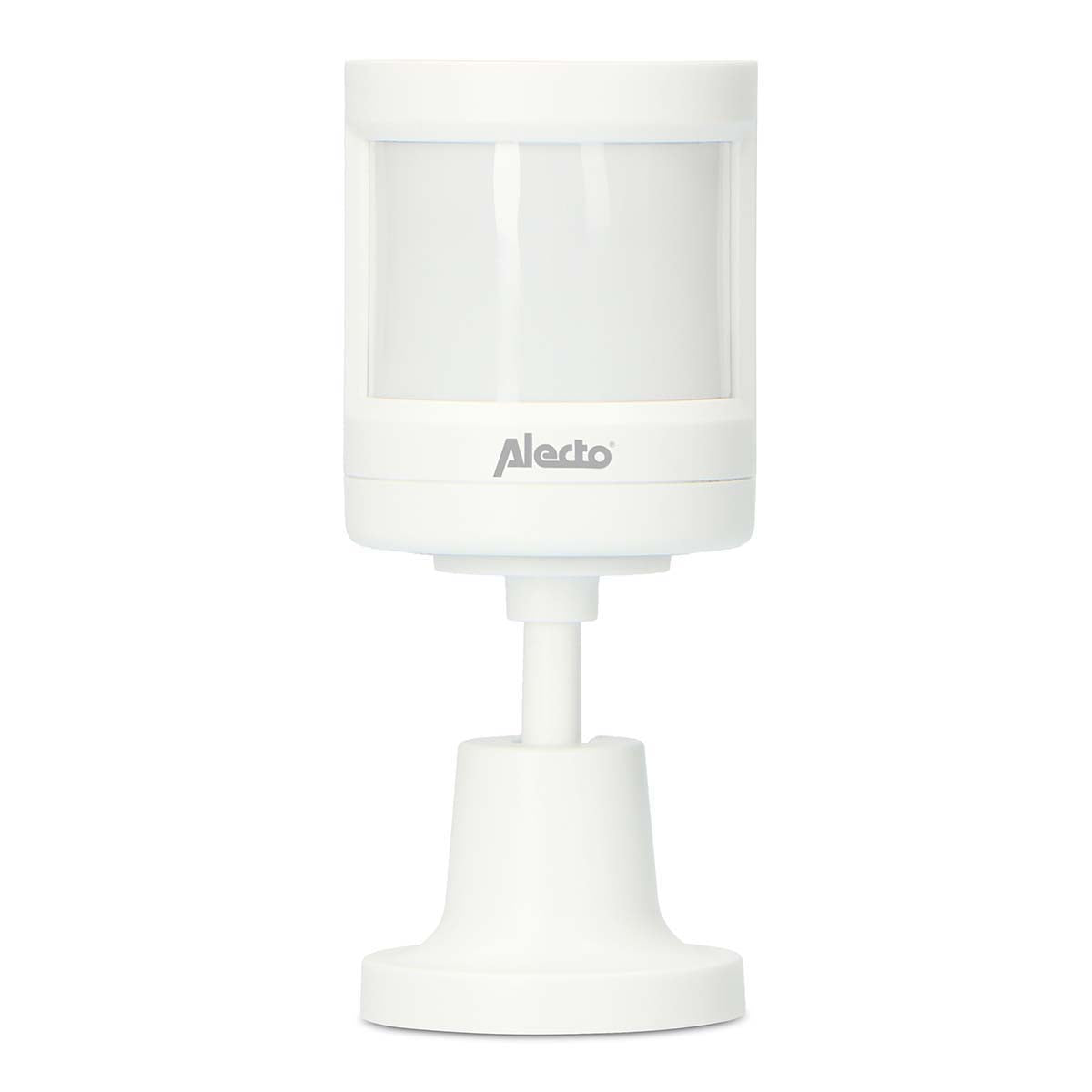

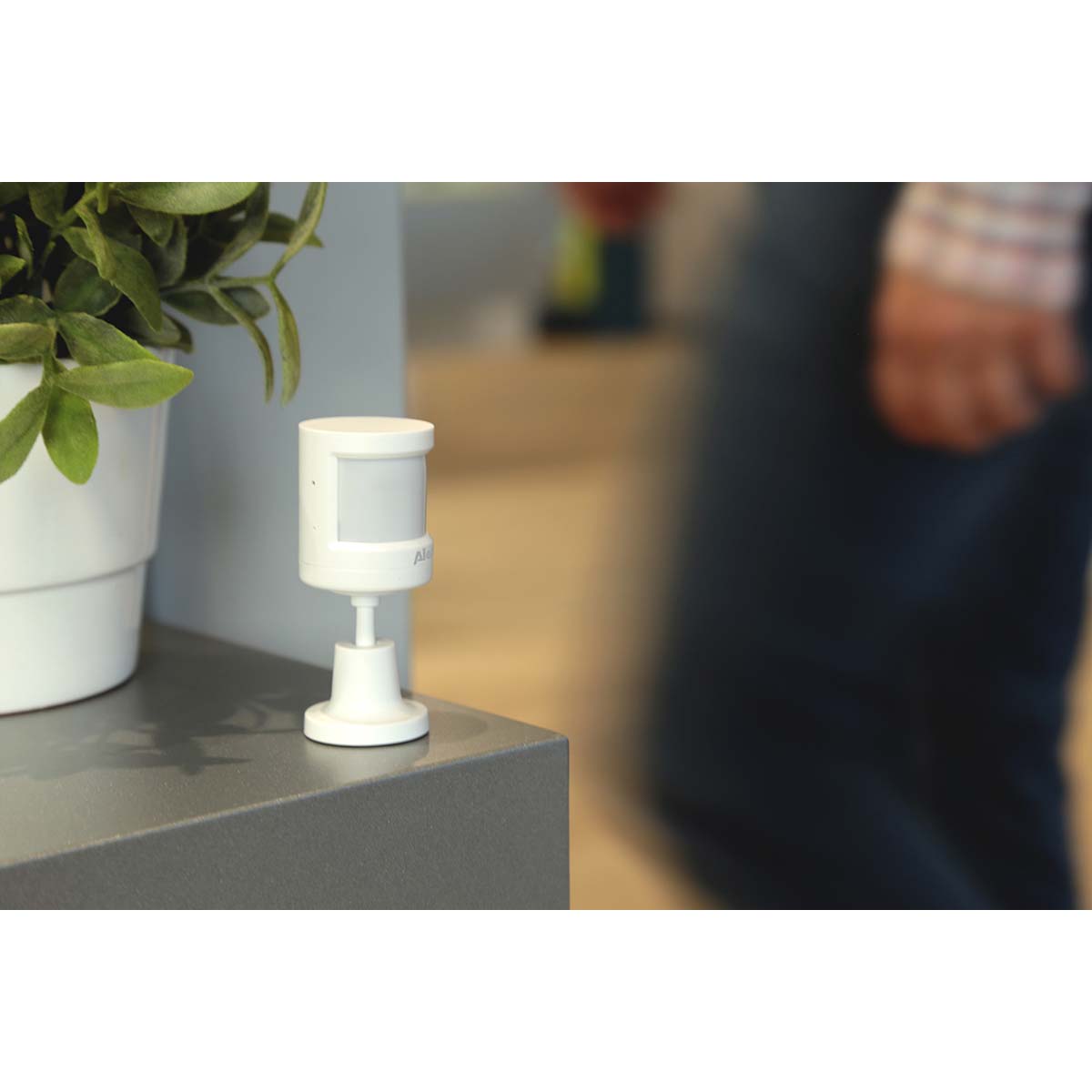

The SMART-MOTION10 Smart Zigbee motion sensor by Alecto
This reliable Smart Zigbee motion-sensor provides a signal when it detects movement. This allows you to set up an automatic action through the free Smart Life app. Why would you use a light switch these days when you do not need one?
What are the advantages of Zigbee motion sensor?
The Alecto SMART-MOTION10 smart Zigbee motion sensor is a wireless sensor that uses the open Zigbee standard. Sensors that use the Zigbee standard work very efficiently and have a low power consumption, which increases the battery life. This reliable smart-motion-sensor will last for 2 years on one battery. The SMART-MOTION10 has to be linked to a Zigbee-gateway such as the Alecto SMART-BRIDGE10. The bridge provides the communication between the internet and the sensor.

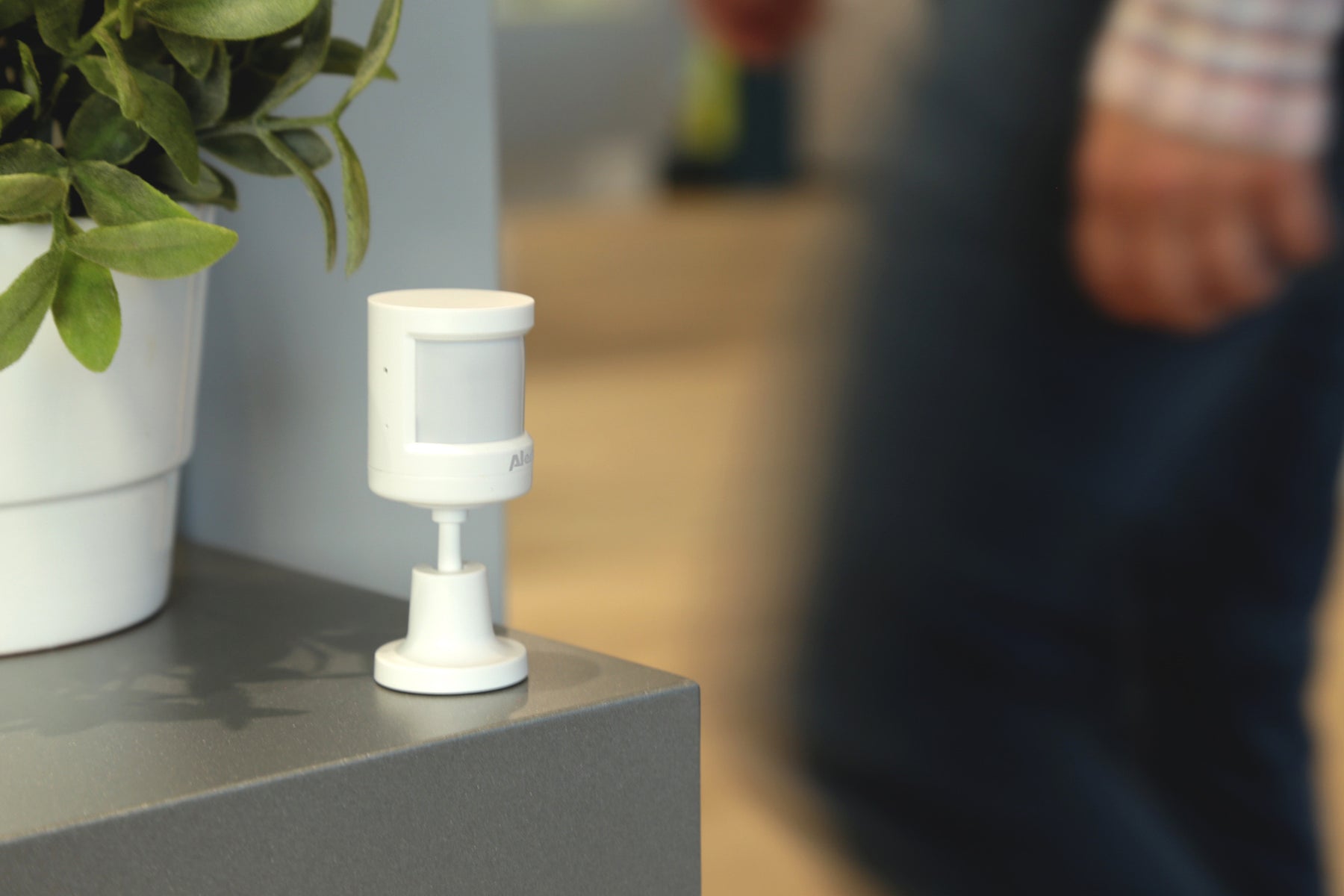

This reliable smart-motion-sensor works with a base station (gateway) so actions can be set-up. You can, for instance, have the lights turned on when you are coming home and the sensor detects movement. This can be very useful whilst entering a dark room with your hands full. By using the Smart Life app, you can write home automation scenarios. The Alecto SMART-MOTION10 motion-sensor works with Tuya. This allows you to link the sensor to other smart devices.

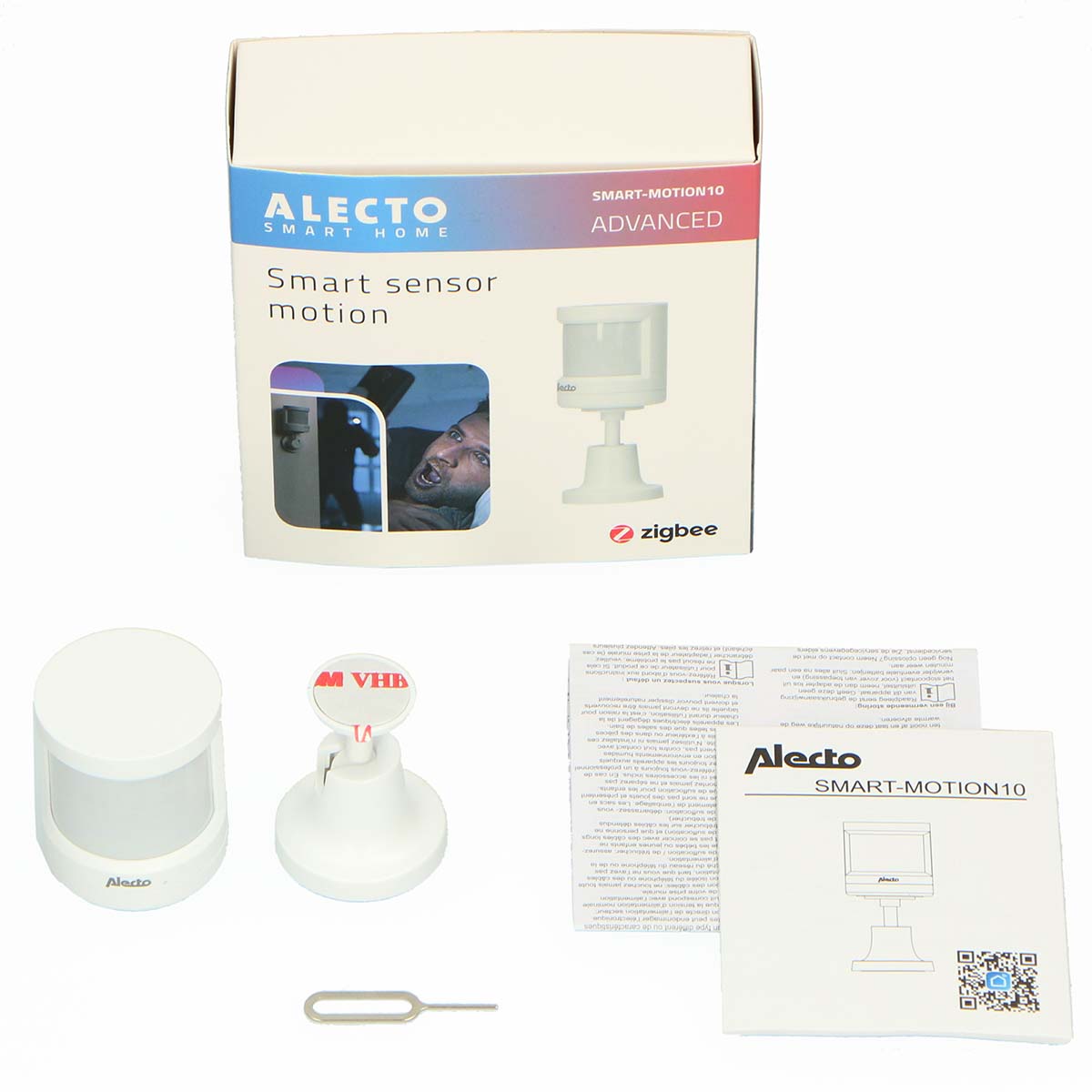

What’s in the box?
- Motion sensor
- CR2450 Button cell
- Reset-tool
- Manual EN / NL / FR / DE / ES / IT / PT / PL / SE
- Universal manual
| Height | 72 mm |
|---|---|
| Length | 33 mm |
| Width | 33 mm |
| Weight | 40 g |
| Alarm programs | Not applicable |
| Alert/notification types | Not applicable |
| App available for | Android™, IOS |
| App name | Smartlife, Tuya |
| Auto time sync | Not applicable |
| Battery 1 chemical composition | Lithium-metal |
| Battery 1 included | Yes |
| Battery 1 operating time standard usage | 1051200min |
| Battery 1 rechargeable | No |
| Battery 1 replaceable / built-in | Replaceable |
| Battery 1 type | CR2450 |
| Battery 1 usage for (main function product) | Main product |
| Battery 1 voltage | 3.0V |
| Battery 1 weight | 6g |
| Battery level indicator | No |
| Battery type | CR2450 |
| Colour | White |
| Communication technology | Zigbee |
| Compatible with | Nedis® SmartLife |
| Compatible with domotica services | Tuya |
| Connectable with other smart products | Yes |
| Control Through Mobile App | Yes |
| Detector angle | 170° |
| Detector range | 7m |
| Diameter | 33mm |
| Dustproof | No |
| Electronic anti-theft security tags required | No |
| Extendable up to | 30 |
| Hygrometer | No |
| IP rating | IP20 |
| Low battery indicator | Yes |
| Material | Plastic |
| Max. battery life | 24Months |
| Minimum guaranteed availability of software and security updates | 2 years after purchase |
| Minimum system requirements | Android 4.1 or higher, iOS 8.0 or higher |

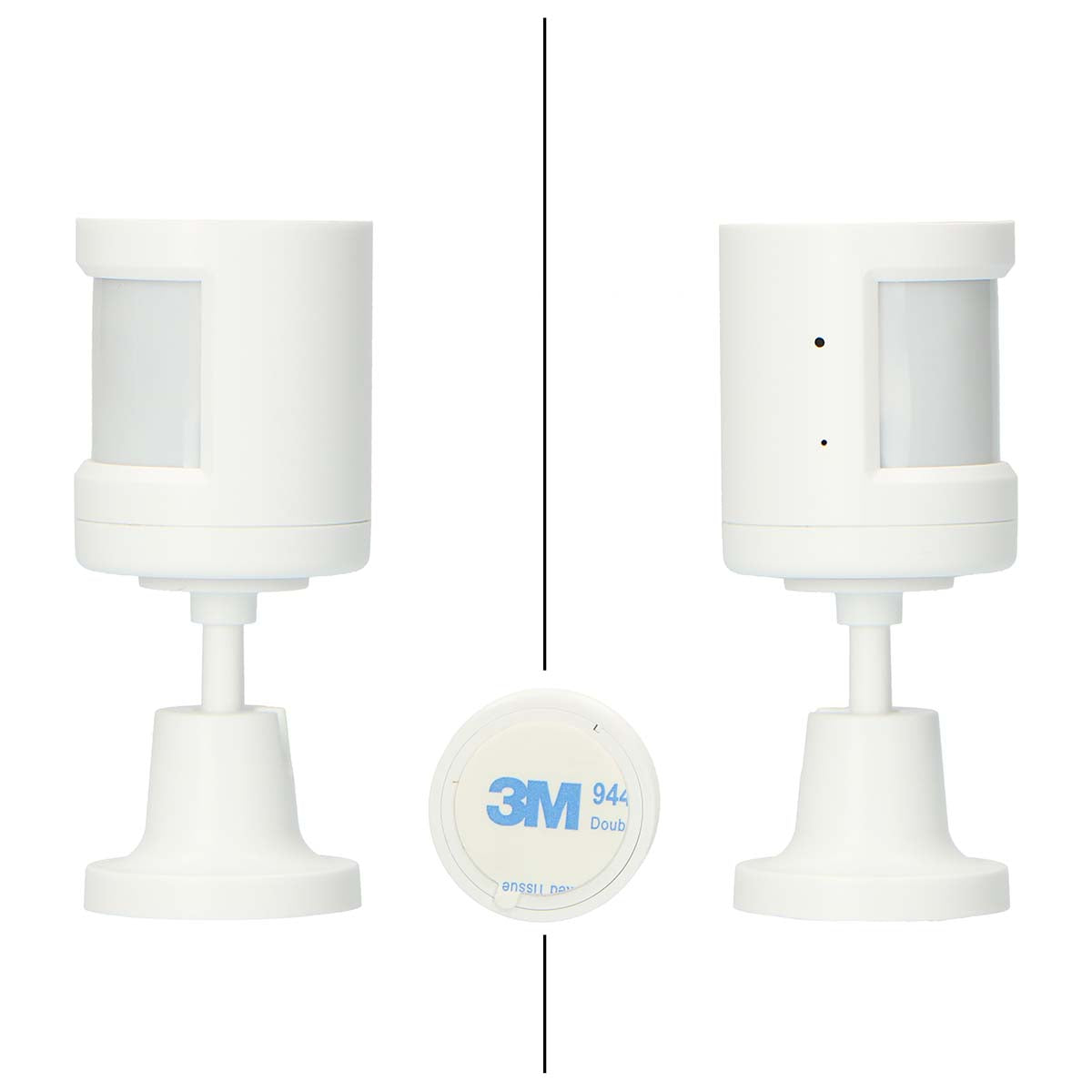

| Mounting system | Double-sided Tape |
| Notes on software and security updates | The compliance of our Internet-connected products with regards to security threats and the performance of agreed functionality is ensured by the provision of software and security updates. |
| Number of batteries 1 | 1 |
| Number of Products in Package | 1pcs |
| Operating temperature range | -10 - 45°C |
| Power plug | USB |
| Power source type | Battery Powered |
| Required batteries (included) | 1x CR2450 |
| Sensor technology | PIR |
| SmartLife | Yes |
| Supported wireless technology | Zigbee 3.0 |
| Temperature range | -10 - 45°C |
| Thermometer (temperature) | No |
| Time schemes via app | Sunset, Time, Day, Sunrise |
| Transmit frequency range | 2412 - 2472MHz |
| UN38.3 applicable / Product has a lithium ion battery | No |
| Use of a bridge required | Yes |
| Water resistant | No |
| Zigbee version | Zigbee 3.0 |
