Product information
Pairing point for up to 30 Zigbee sensors

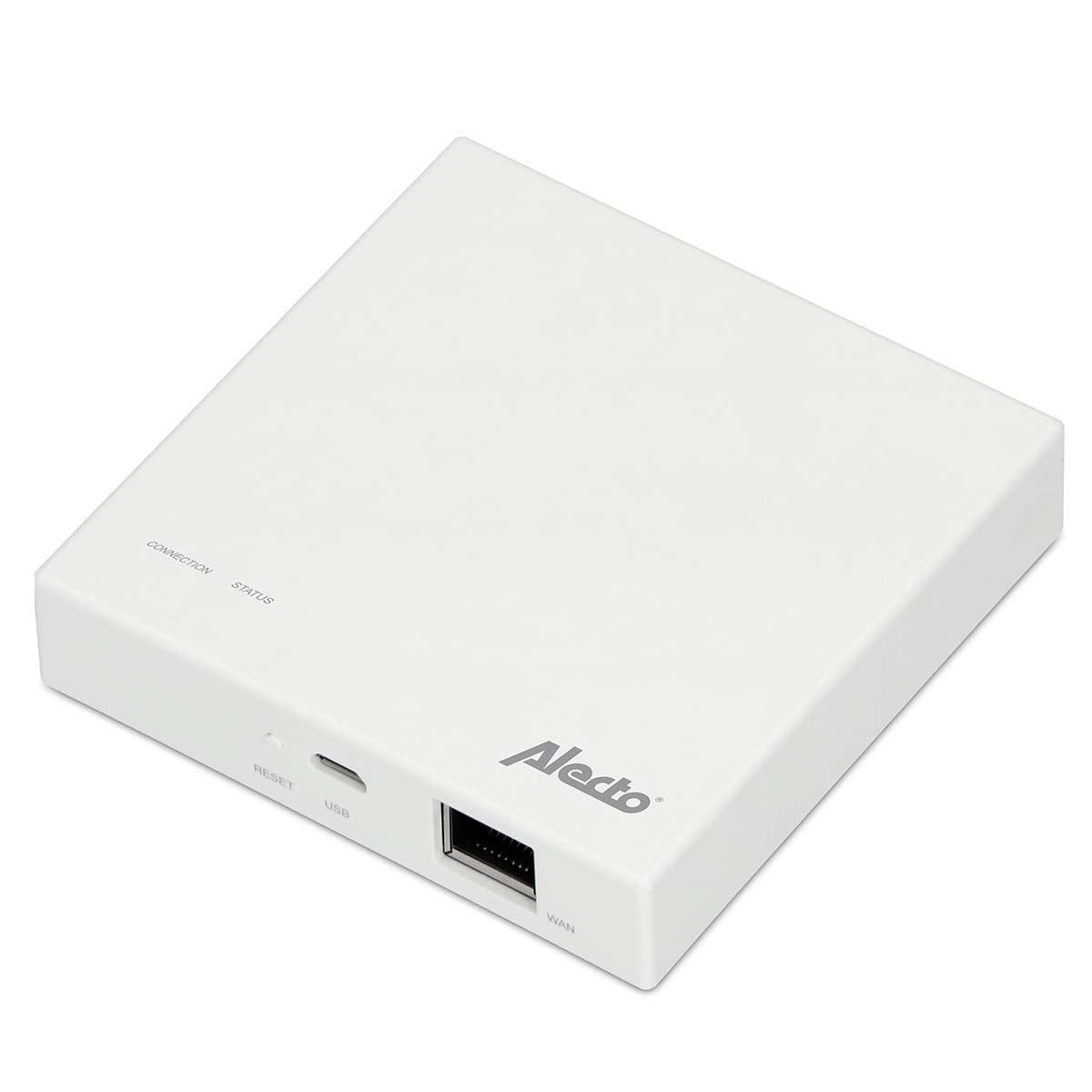

- Alecto SMART-BRIDGE10 pairing point
- Smart Zigbee gateway for Zigbee sensors
- Makes your house a smart home by linking Zigbee sensors to the SMART-BRIDGE10
- Add up to 30 Zigbee sensors to one SMART-BRIDGE10
- Works with all Zigbee sensors
- Uses the open Zigbee standard

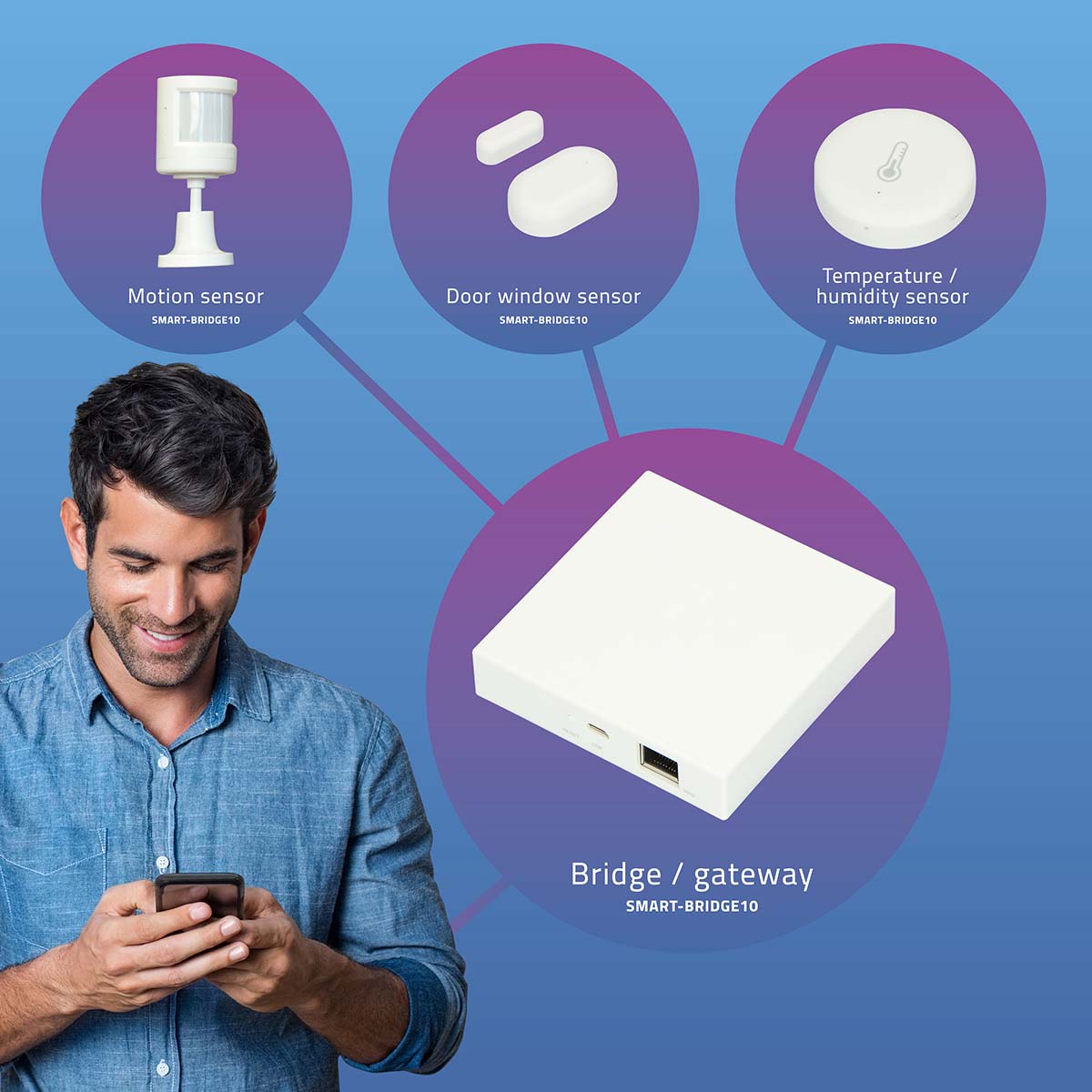

One central hub for smart sensors

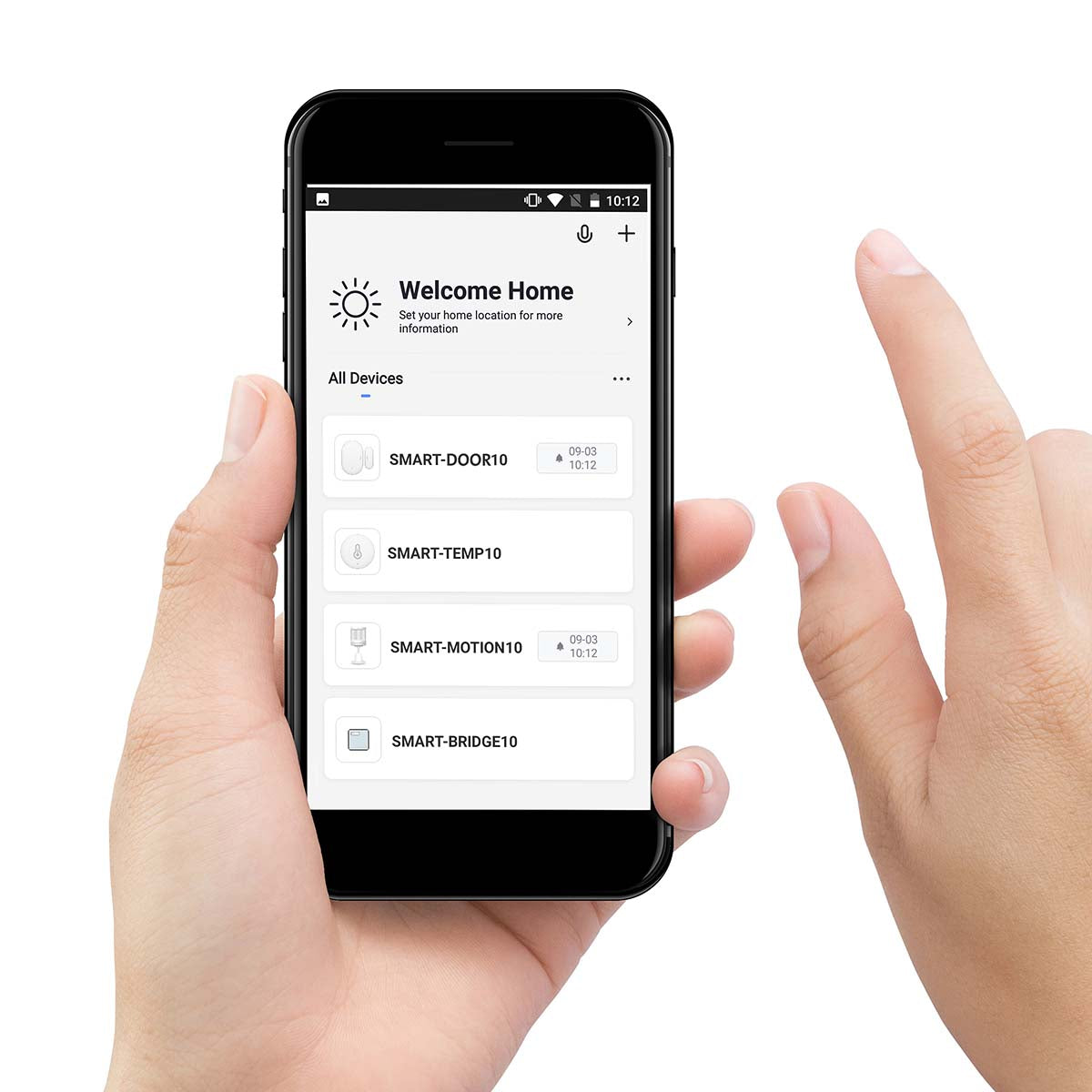

The SMART-BRIDGE10 pairing point by Alecto helps you to easily smart-up your house by connecting and controlling all your Zigbee sensors. The Alecto SMART-BRIDGE10 allows the communication between smart sensors and the internet. Full control is made easy with a free Smart Life iOS and Android application on your smartphone or tablet.
A useful tool in home automation scenarios
The Alecto Smart bridges uses the Zigbee standard. Zigbee is a communication protocol which compares to WIFI and Bluetooth® that enables smart sensors to intercommunicate. Zigbee is very energy efficient so sensors with this protocol have long battery life. Some Zigbee sensors will last for years without changing the batteries. Pairing to the Alecto SMART-BRIDGE10 is wireless so sensors can be placed anywhere in your house.
By linking smart sensors to the Alecto SMART-BRIDGE10 you can use Tuya, which brings many advantages. You could, for instance, have your SMART-CAM10 start recording when the smart motion sensor detects movement or have the heater go on when the SMART-HEAT10 senses that it starts to go cold inside your house. You can link up until 30 sensors to the SMART-BRIDGE10 which allows you to supply your whole house with sensors and make it smart. Turn your home into a smart home!

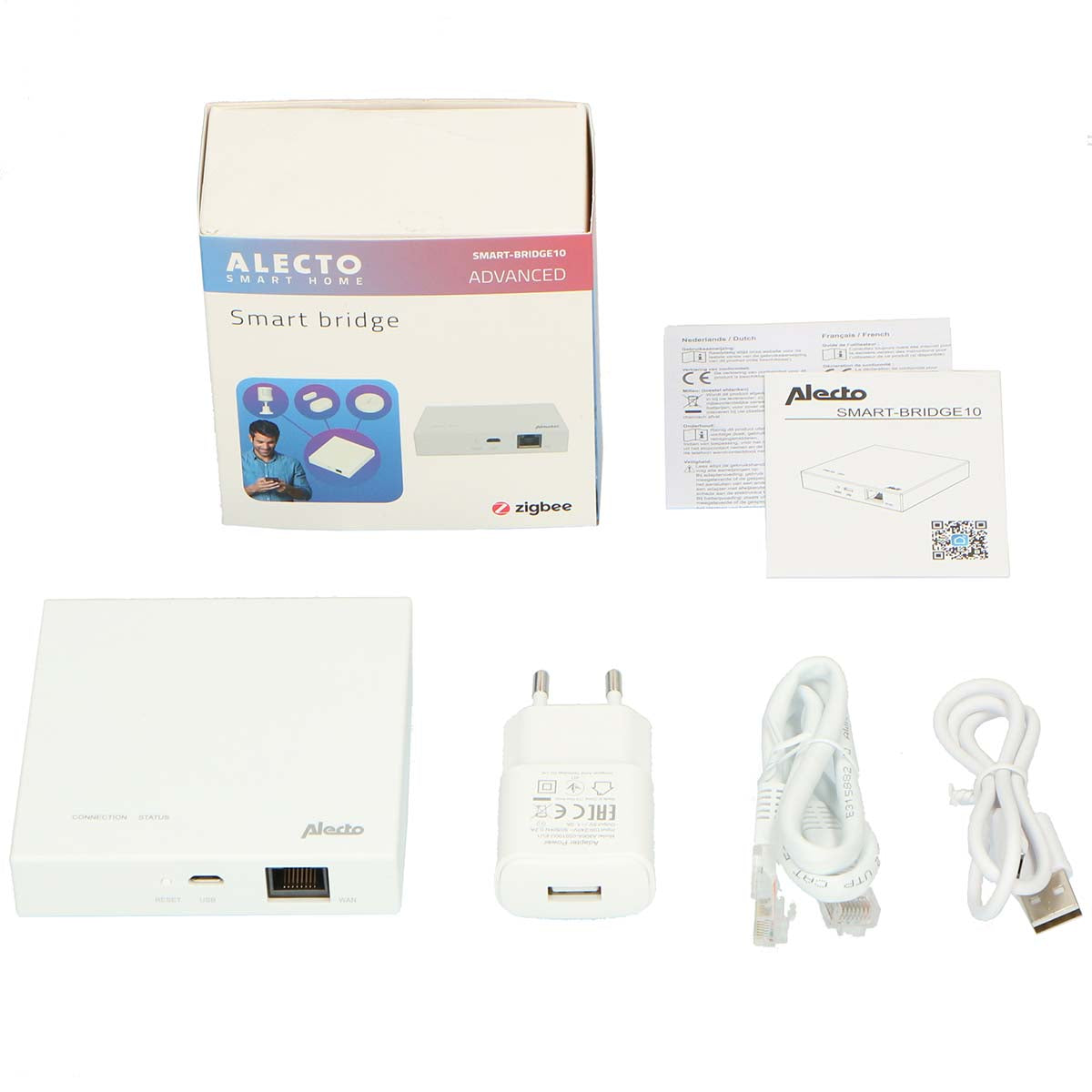

What’s inside the box?
- Smart bridge
- USB adapter
- Adapter cable USB / Micro USB
- Network cable
- Manual NL / EN / DE / FR / ES / IT / PT / PL / SV / RO
- Universal manual
Specifications
Item number | SMART-BRIDGE10 |
---|---|
GTIN / EAN code | 8712412585182 |
Certification | CE |
Measurements for product 1: | Main product |
Product height 1 | 9.00 centimeter |
Product width 1 | 9.00 centimeter |
Product depth 1 | 2.30 centimeter |
Colour product | White |
Material | Plastic |
Product placement | Standalone |
Applicable for indoor/outdoor use | Indoor |
Mains adapter input voltage 1 (V) | 100-240 V |
Mains adapter input frequency 1 | 50-60 Hz |
Mains adapter output voltage 1 (V) | 5.00 volt |
Mains adapter output current 1 | 1.00 ampere |
Mains adapter output power 1 (W) | 5.00 watt |
Mains adapter no load energy consumption 1 (W) | 0.07 watt |
Standby power in Watts 1 | 0.00 watt |
Off-mode power in Watts 1 | 0 |
Network standby power in Watts 1 | 0.00 watt |
Time period switch to ErP state 1 | 0 |

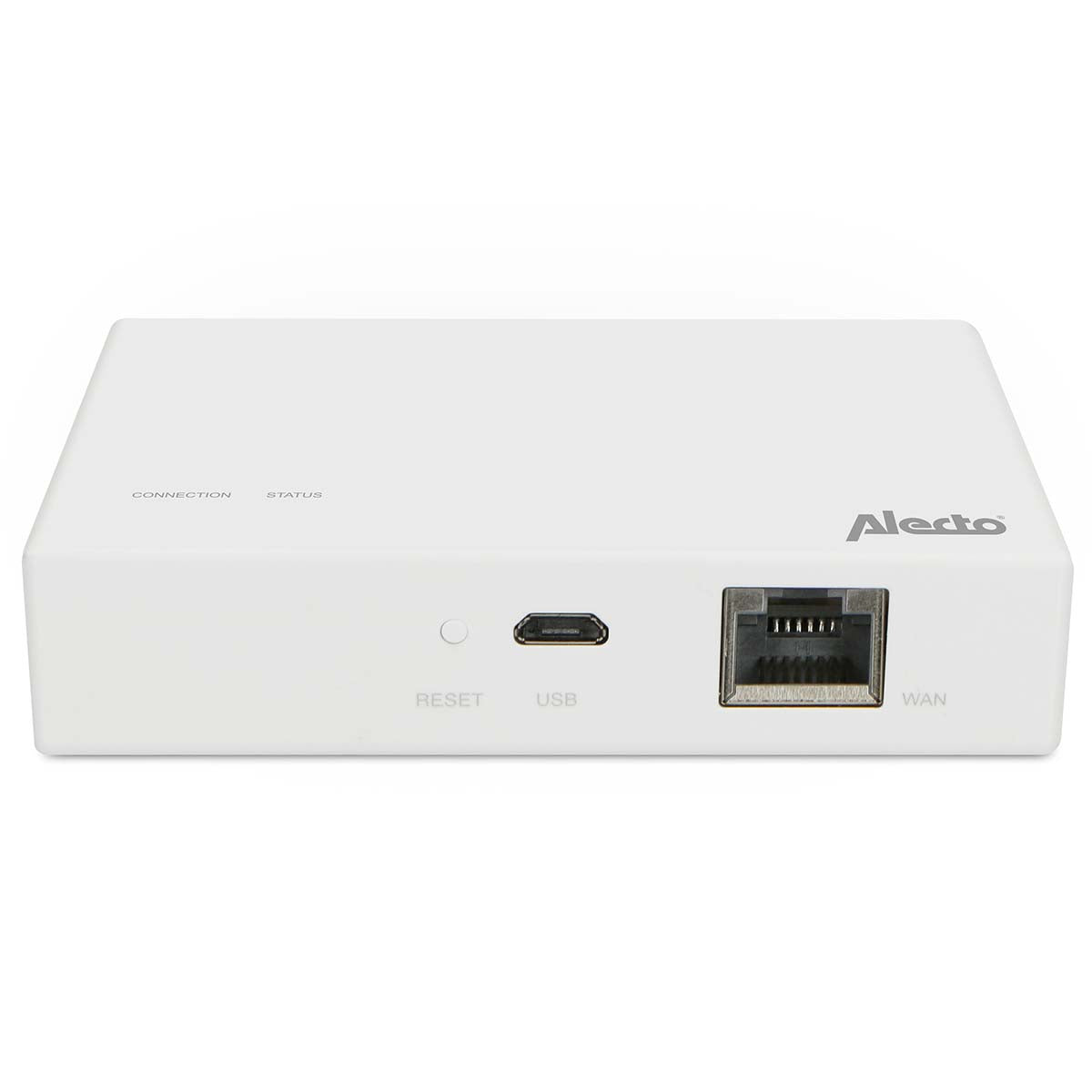

Audio / video / data connections input | Ethernet Lan (RJ45) |
Communication technology | Zigbee |
Network connection (LAN) | Yes |
Operating system | Android, iOs |
Minimum system requirements | Android 4.1 or higher, iOS 8.0 or higher |
App controlled | Yes |
App name | Smartlife, Tuya |
Wi-Fi standard | Yes, Wi-Fi 2.4GHz |
Use of a bridge required | Yes |
Connectable with other smart products | Yes |
Extendable up to | 30 |
Compatible with domotica services | Tuya |
Zigbee version | Zigbee 3.0 |
Warranty | 24 months |
Product weight (kg) | 0.15 kilogram |
Retail packaging / Sales unit height (m) | 0.09 meter |
Retail packaging / Sales unit width (m) | 0.09 meter |
Retail packaging / Sales unit depth (m) | 0.05 meter |
Retail packaging / Sales unit gross weight (kg) | 0.18 kilogram |
Minimum guaranteed availability of software and security updates | 2 years after purchase |
Notes on software and security updates | The compliance of our Internet-connected products with regards to security threats and the performance of agreed functionality is ensured by the provision of software and security updates. |
Downloads
1ste Alecto sensor (koolmonoxide) op internet, geeft melding door op smartphone (smartlife app). Jammer dat ik de sensor niet kan gebruiken in de Samsung smartthings/google nest apps. Deel van mijn plan was mijn google nest thermostaat de ketel uit te laten schakelen bij CO-alarm, maar dat gaat helaas niet (vandaar niet de max. score).
