Product information

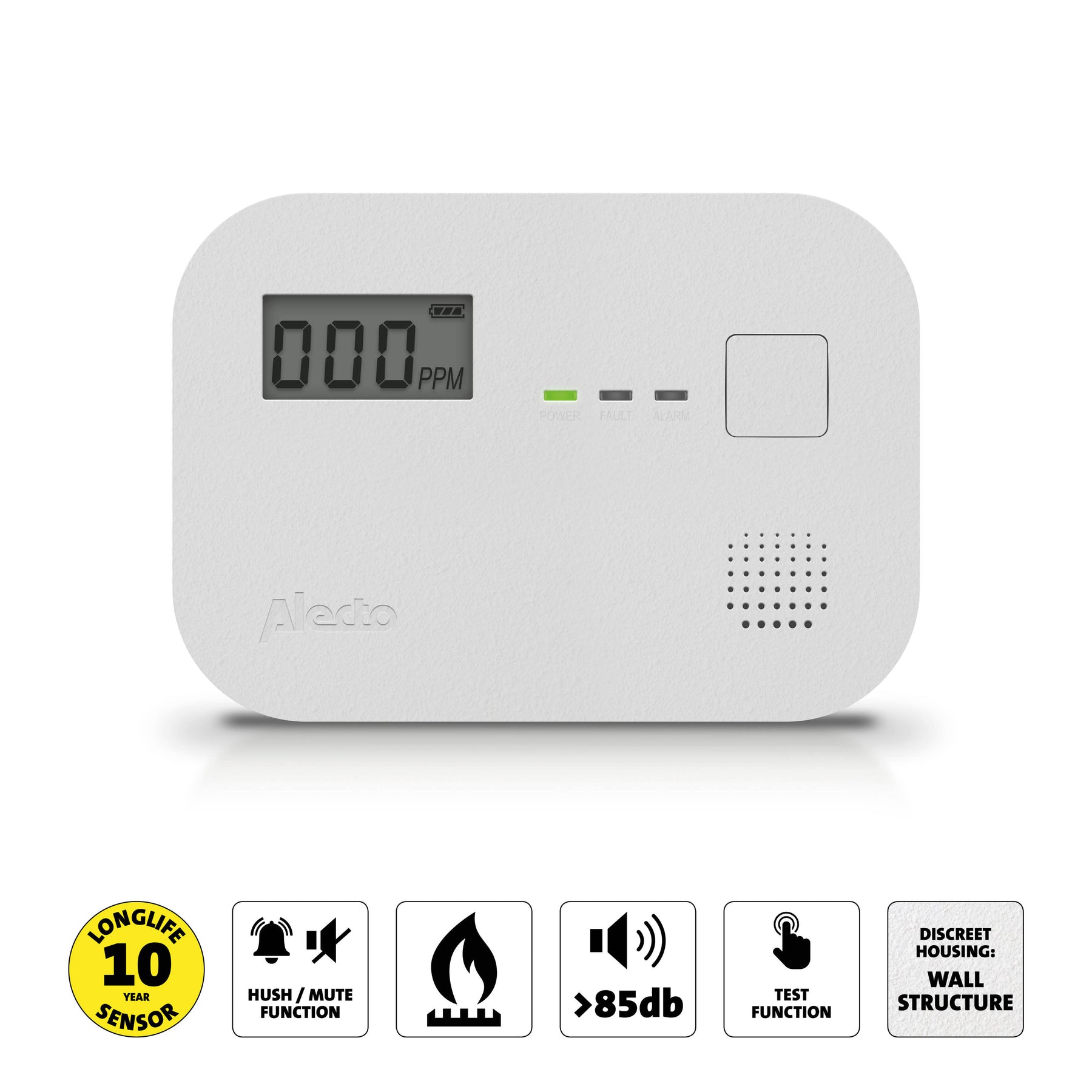

The Alecto COA3920 carbon monoxide alarm immediately warns you in the event of carbon monoxide (CO) detection. The alarm has a lifespan of up to 10 years. The alarm is equipped with a stucco grainy wall structure and therefore hides itself inconspicuously and beautifully in almost any interior.
Key features
- The 10-year sensor ensures you have a safe alarm for a long time.
- The CO alarm comes with three AA batteries so you can use it straight away.
- The carbon monoxide alarm goes off when the concentration of carbon monoxide is too high, but also warns you of low concentrations.
- The carbon monoxide alarm clearly indicates what’s going on using sound and lights. For example, when the batteries are low or when the sensor’s life ends after 10 years.
- It comes with a bottom plate, screws and plugs for easy and quick assembly.
Wall-mounted housing

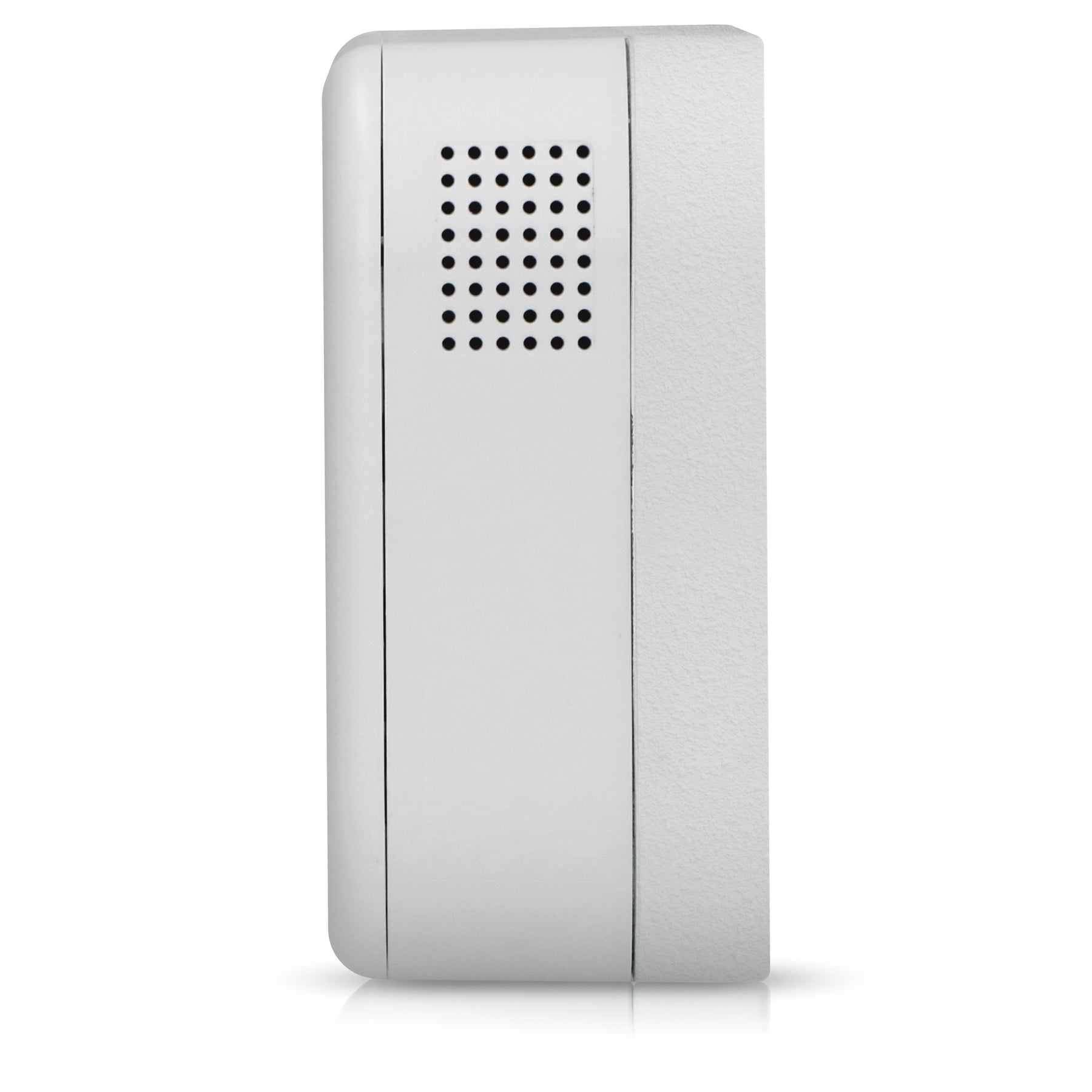

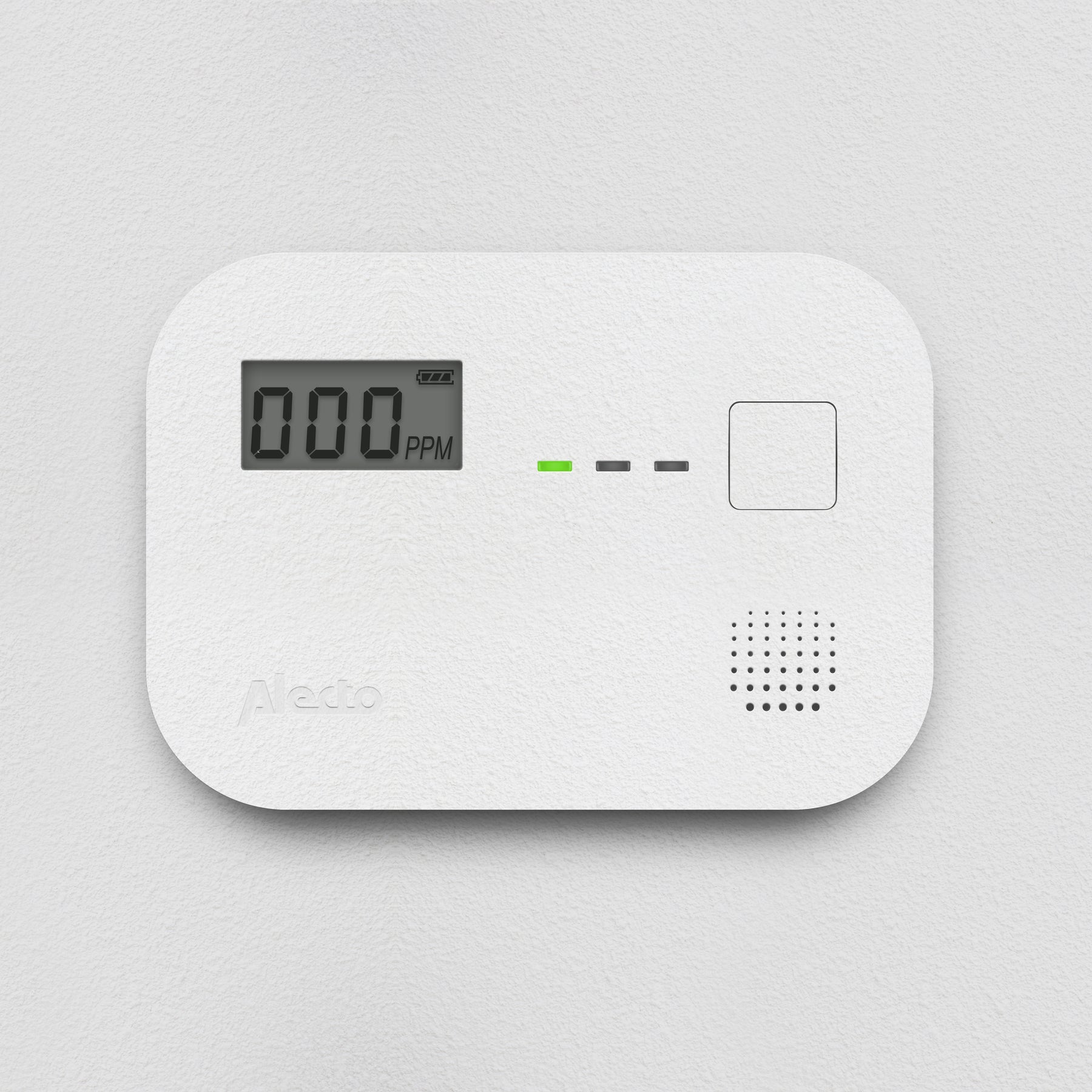

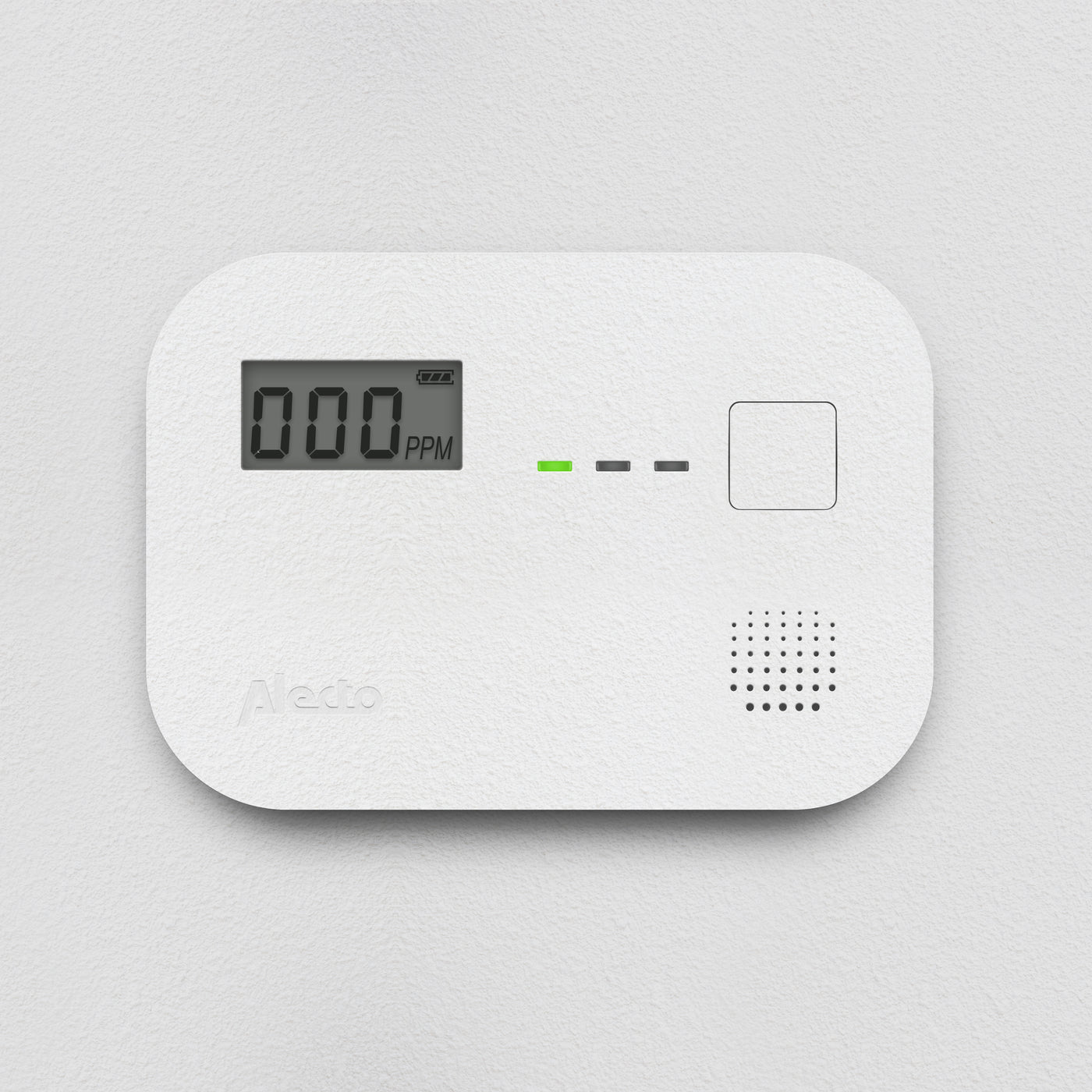

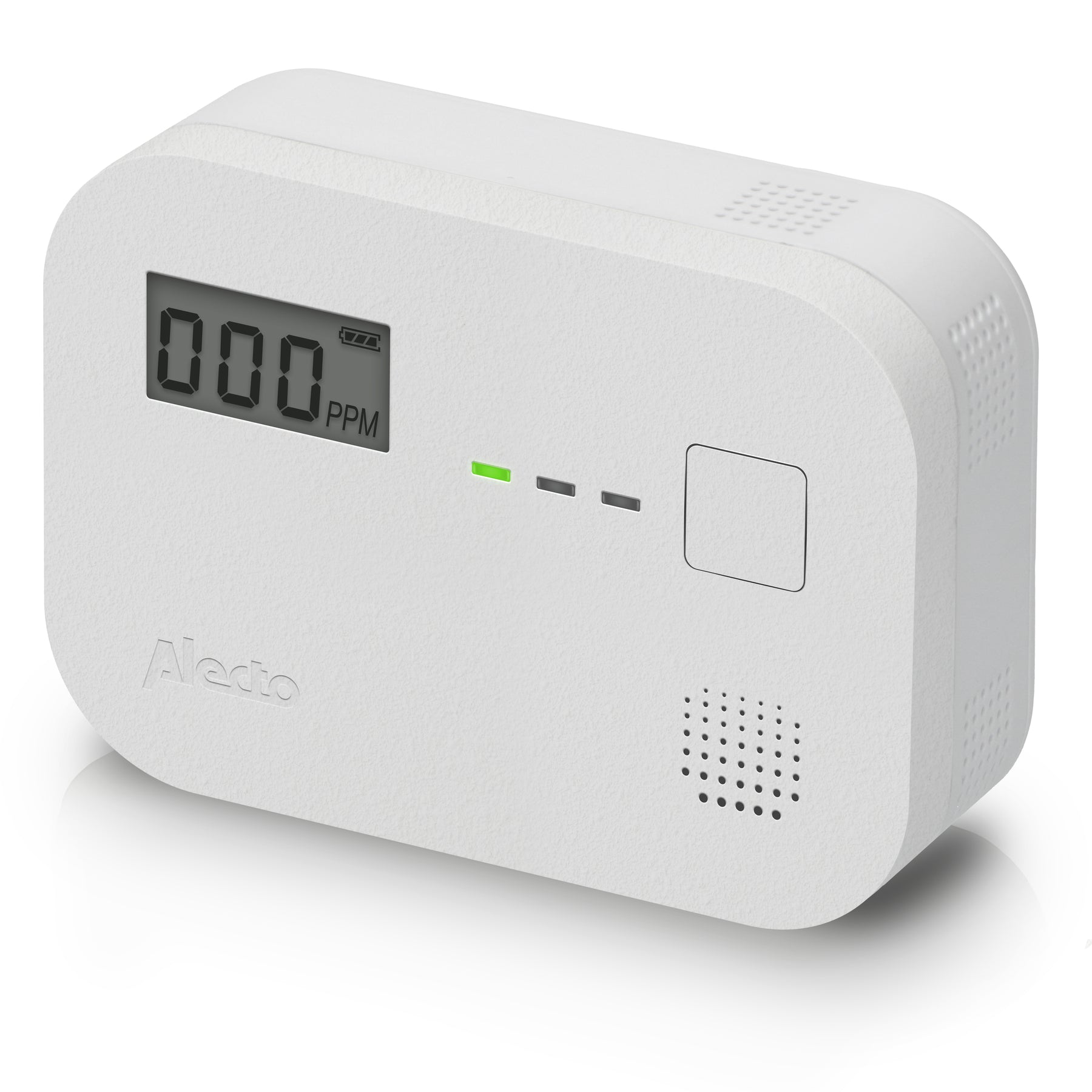

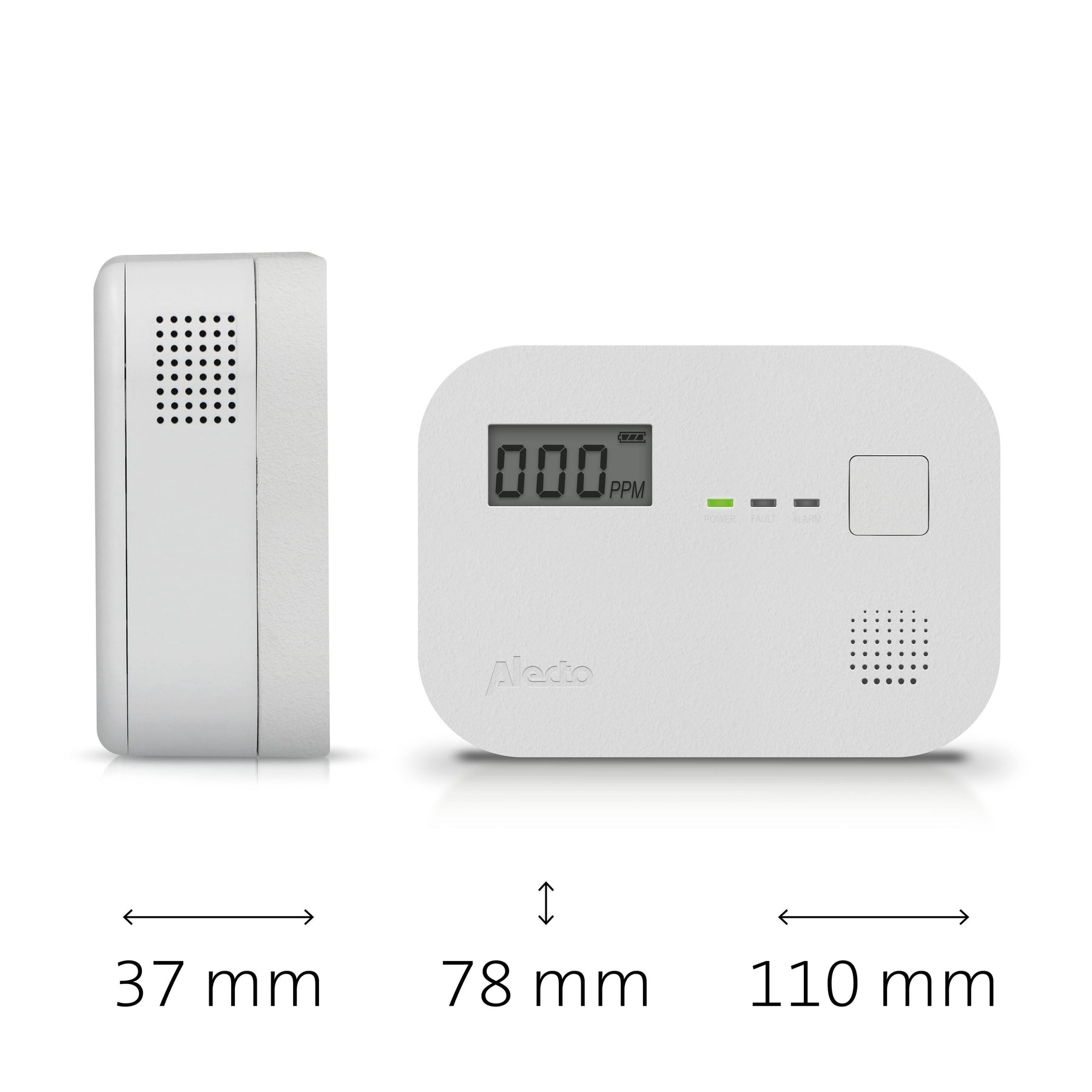

The carbon monoxide alarm’s housing, also known as a CO alarm, is remarkably inconspicuous. The alarm is equipped with a stucco granular wall structure. This way it hides nicely in most walls. The CO alarm is compact (78 x 110 x 37 mm (3 x 4 x 1,4")) and suitable for hanging as well as standing.
It also warns of low carbon monoxide concentration
Carbon monoxide alarms display the concentration of carbon monoxide in ppm. Ppm stands for parts per million, or number of parts per one million particles. It is required by law that CO alarms sound the alarm at a detected concentration of carbon monoxide over 50 ppm for 60 minutes. Even when you sleep, an alarm of >85dB will not go unnoticed.
A long-term presence of a low CO concentration is also harmful to your health. The Alecto COA3920 carbon monoxide alarm already gives a warning when a concentration of 30 ppm or less is detected for 60 minutes.
Additional insight on the display

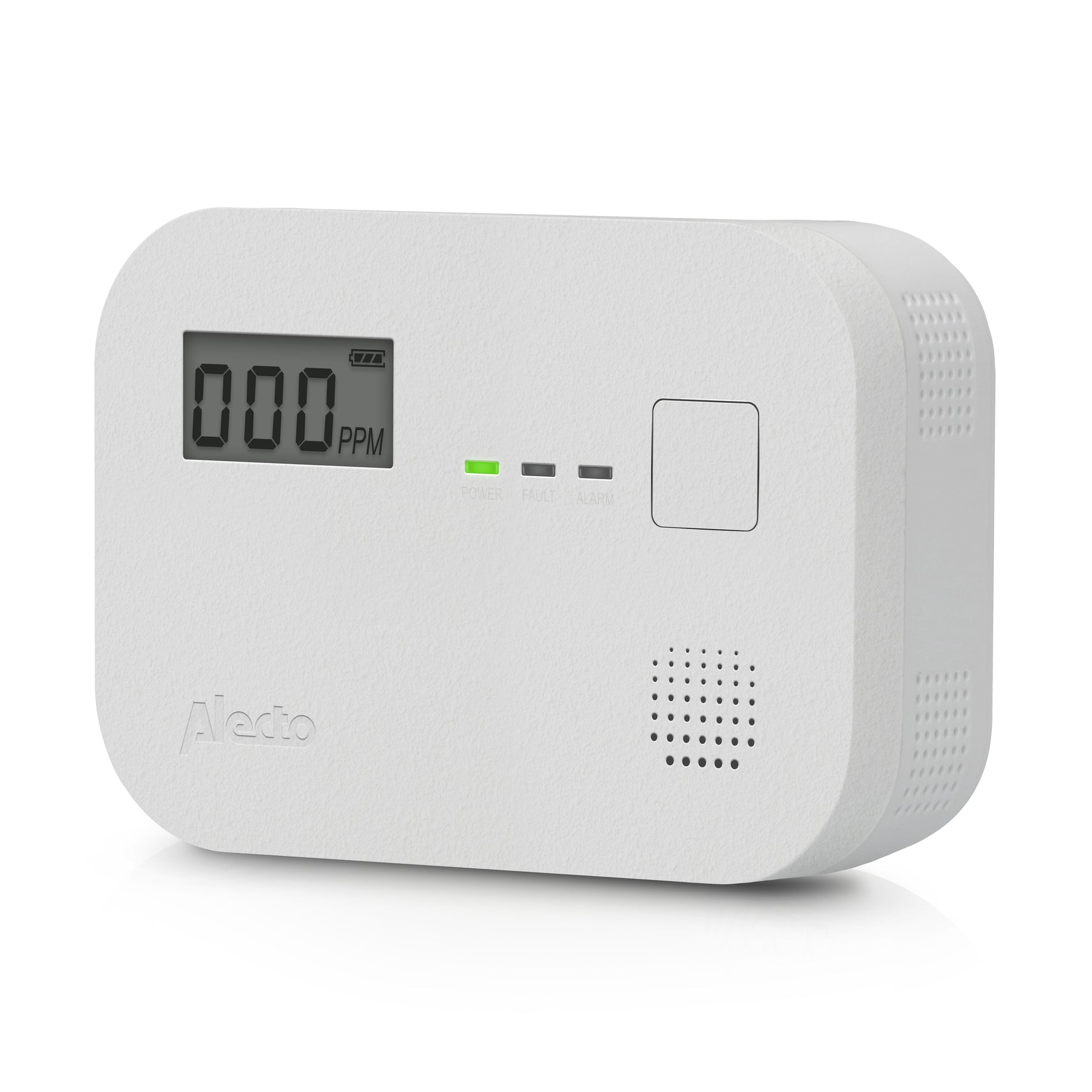

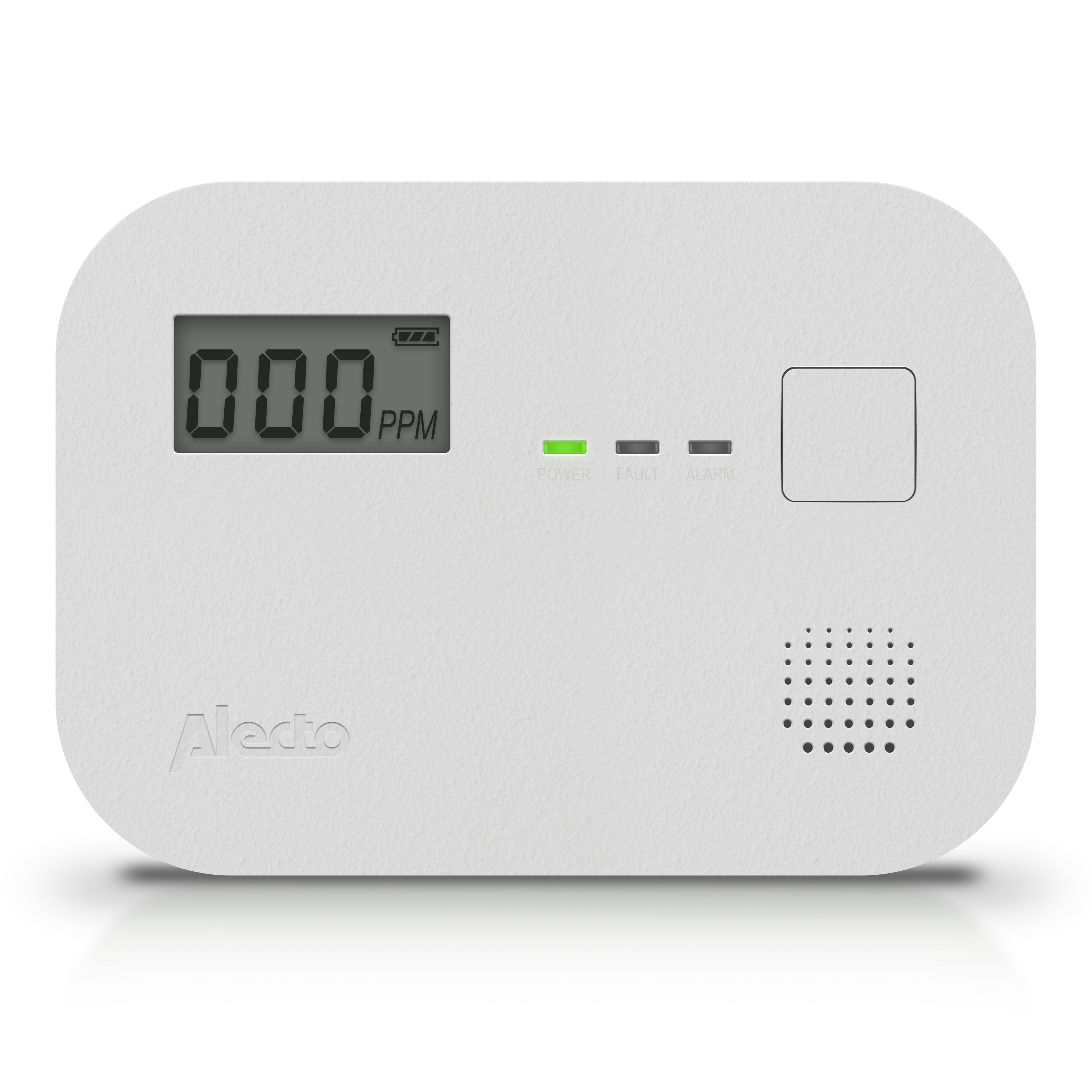

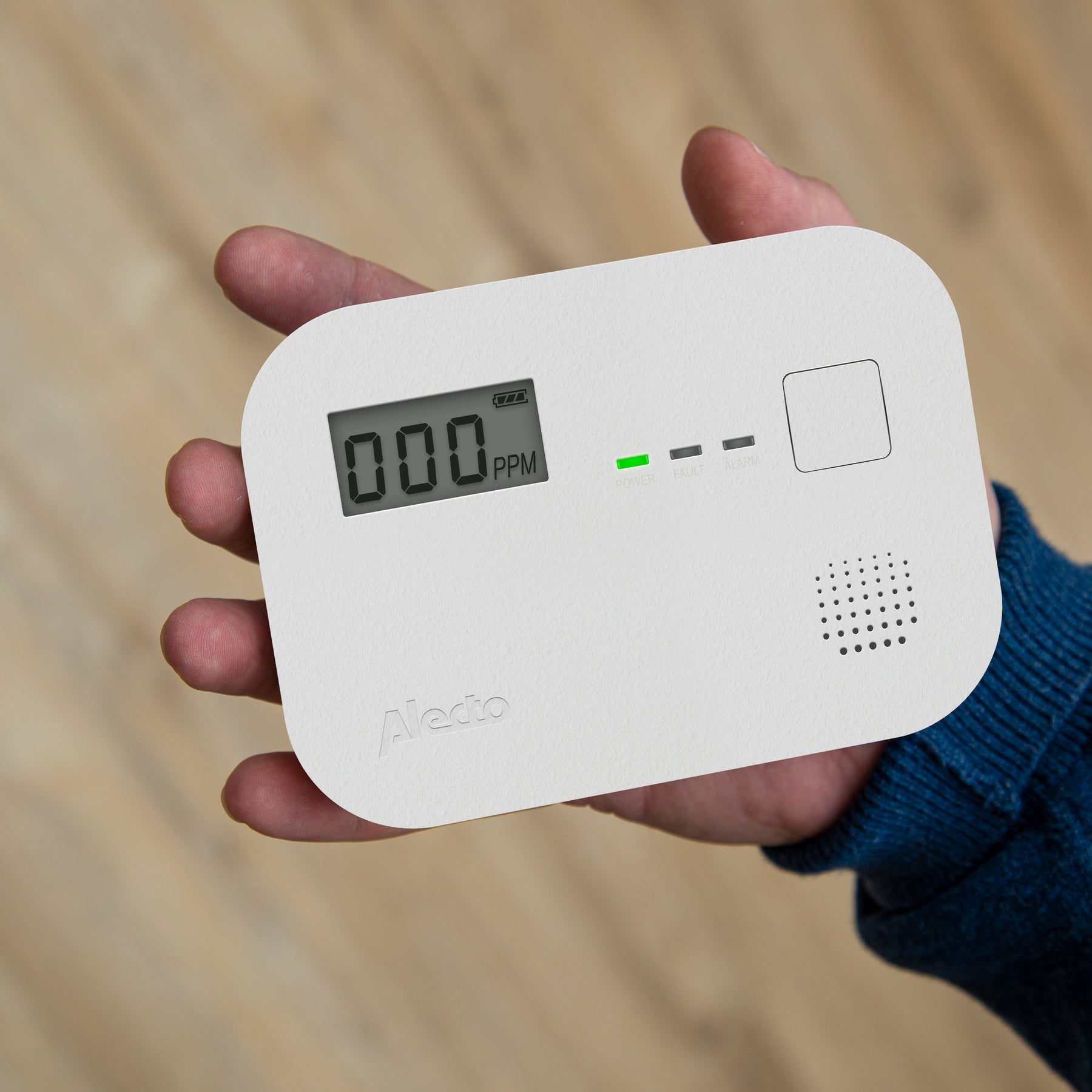

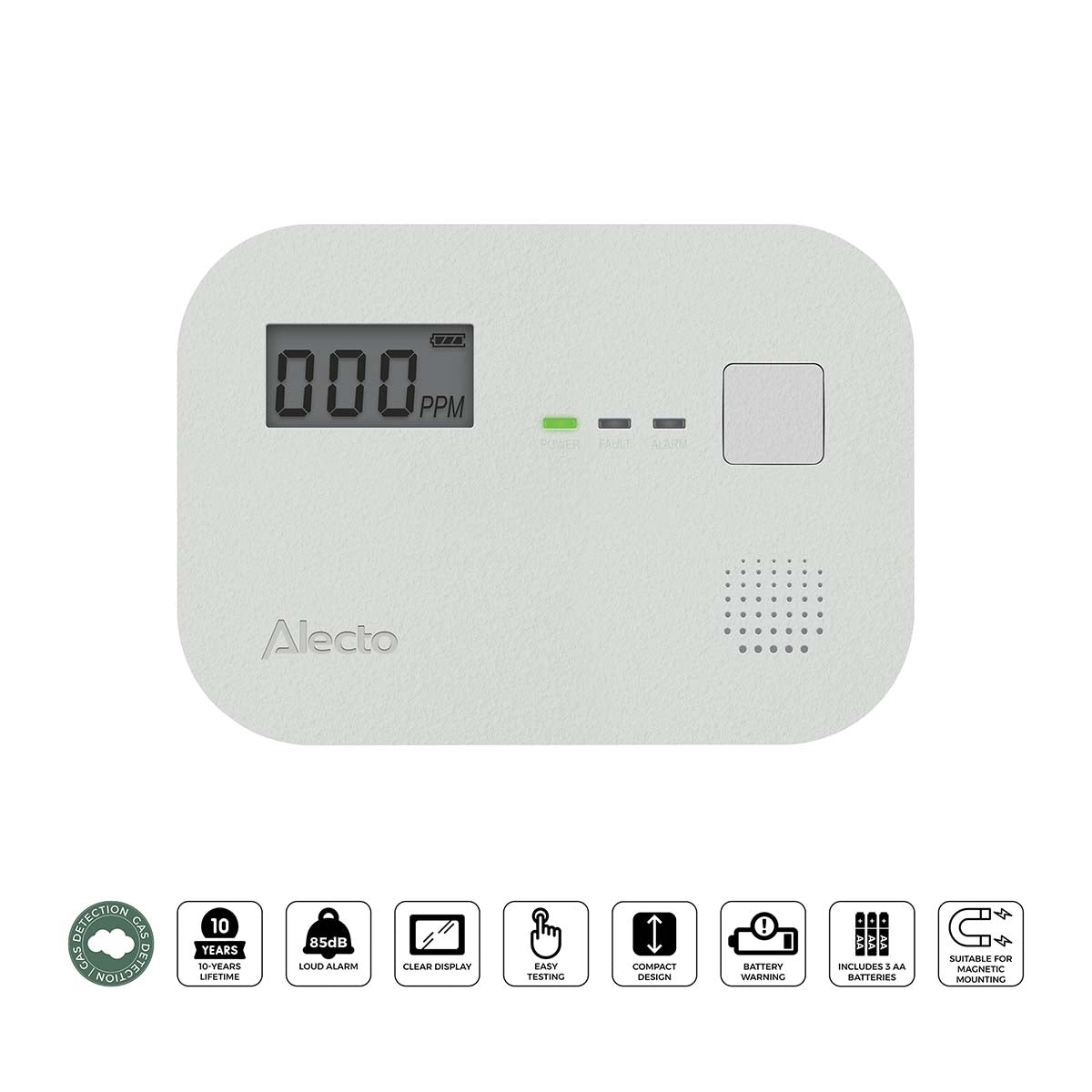

The COA3920’s display provides additional insight. For example, the carbon monoxide concentration is displayed on the display at - usually - 000ppm. Furthermore, the display provides insight into the battery status and shows notifications when the CO concentration is too high, when it’s in test mode and if there are any error messages.
Highest quality
Like all Alecto carbon monoxide alarms, they are of the highest quality and comply with the European Standard (EN50291-1:20180). The Alecto COA3920 has a test button which allows you to periodically evaluate whether the carbon monoxide alarm still works properly. No more worries about carbon monoxide with this handy CO alarm!
The Alecto COA3920 is also available without a display as model COA1910.
What's in the box?
- Carbon monoxide alarm COA3920
- 3 AA batteries

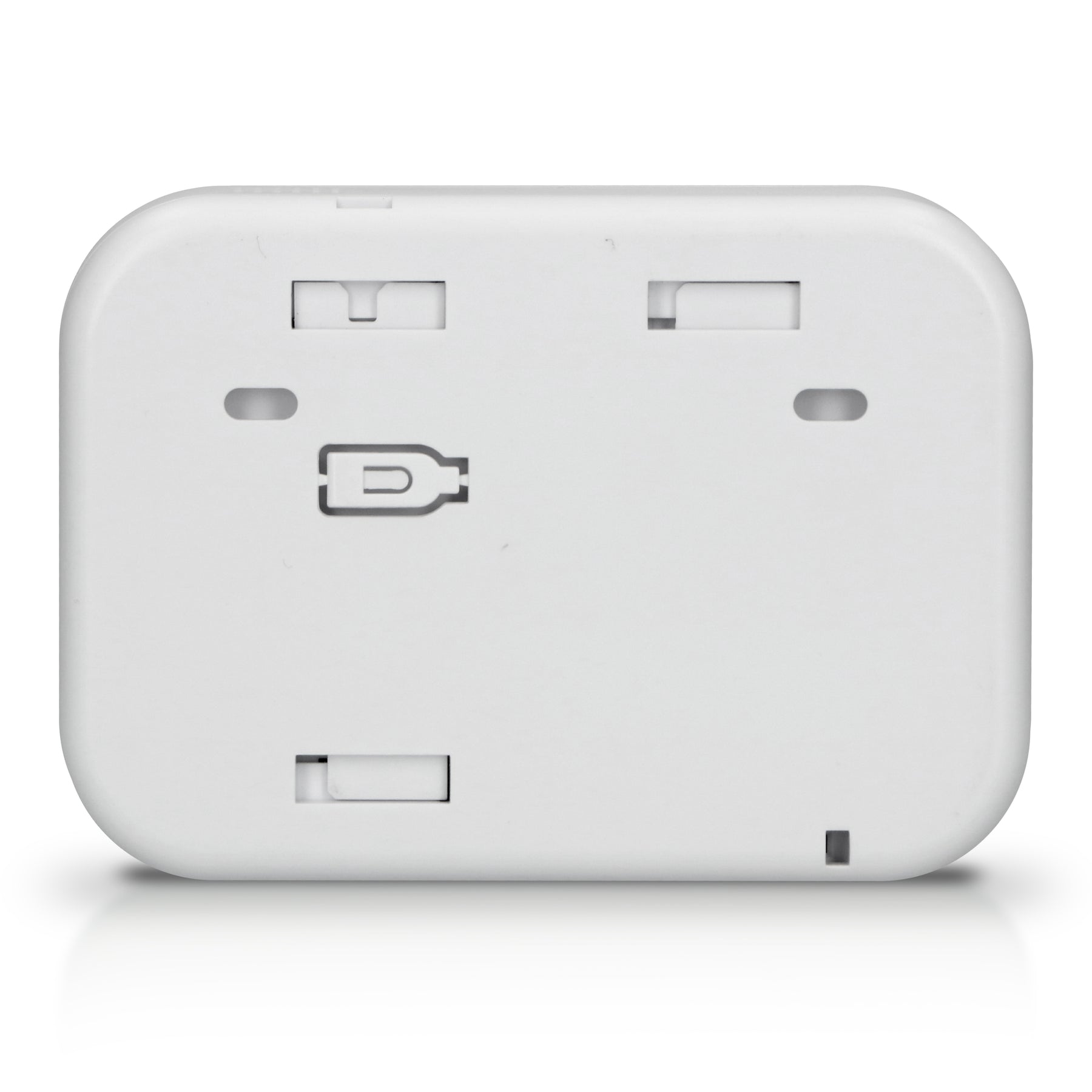

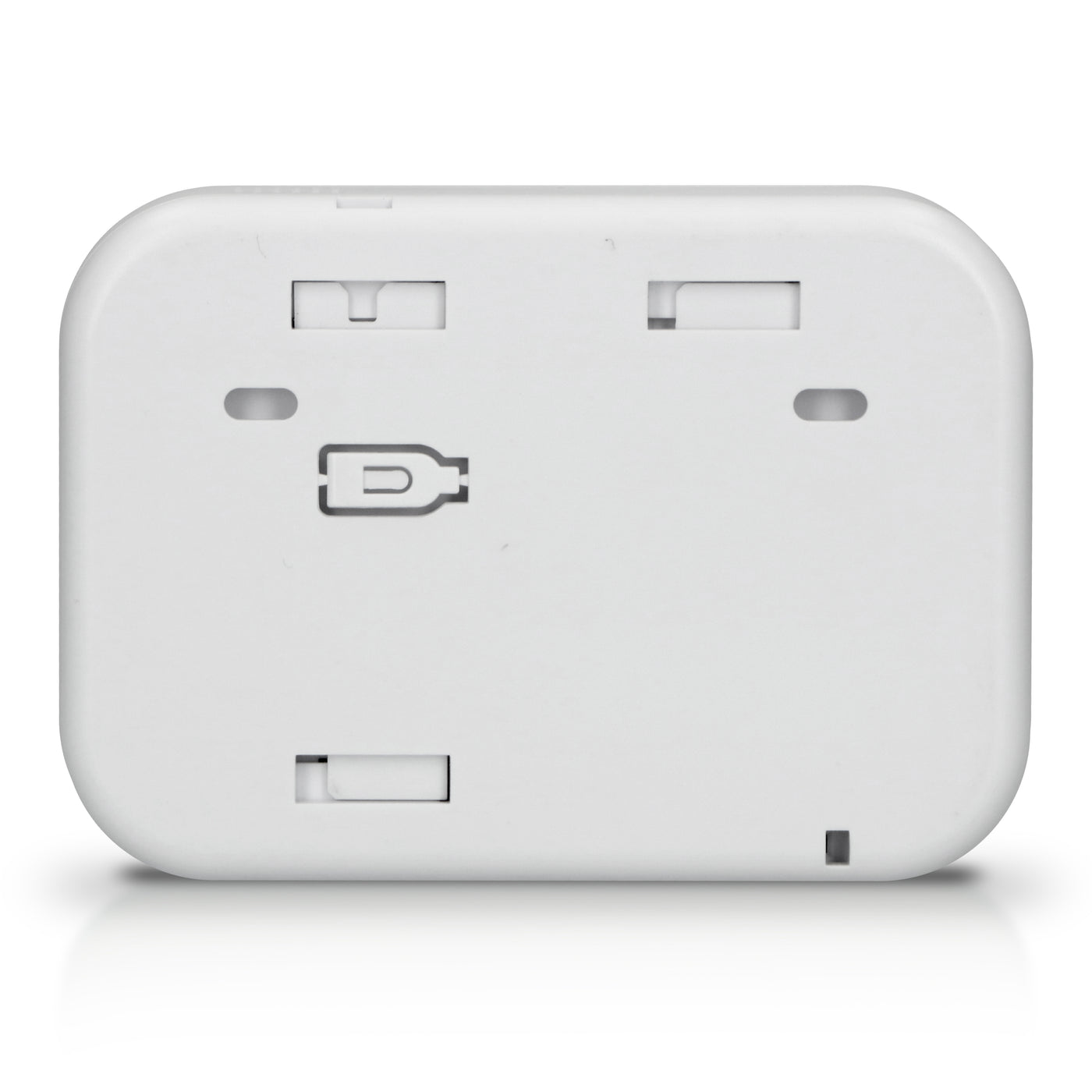

- Bottom plate
- 2 mounting screws and plugs
- Manual NL / EN / DE / FR
Specifications
Item number | COA3920 |
---|---|
GTIN / EAN code | 8712412596003 |
Certification | CE, EN50291 |
Measurements for product 1: | Main product |
Product height 1 | 7.80 centimeter |
Product width 1 | 11.00 centimeter |
Product depth 1 | 3.70 centimeter |
Colour product | White |
Material | Plastic |
Fire retardant ABS plastic | No |
Product placement | Standalone, Wall mount |
Mounting system | Screw mounting |
Display | Yes |
Battery status indicator | Yes |
Low battery indicator | Yes |
App controlled | No |
Detection | Carbon monoxide |
Detection/display of CO from (in ppm) | 20 ppm |
Audible signal detection low concentration carbon monoxide from (in ppm) | 30 ppm |
CO alarm from (in ppm) | 50 ppm |
Alarm signal type | Audible signal |
Alarm signal strength (>dB) | 85.00 decibel |
Sensor life time | 10 years |
Sensor life time 10 years | Yes |
Warranty | 24 months |
Product weight (kg) | 0.20 kilogram |
Retail packaging / Sales unit height (m) | 0.12 meter |
Retail packaging / Sales unit width (m) | 0.04 meter |
Retail packaging / Sales unit depth (m) | 0.15 meter |
Retail packaging / Sales unit gross weight (kg) | 0.24 kilogram |
Battery life | 2 years |
Battery life time 10 years | No |
Detection technology | Electro-chemical |
Connectable | No |
Hush / mute function | Yes |
Time-out/ pause function | No |
Test and reset function | Yes |
Suitable for magnetic mounting | Yes |
Emergency light | No |

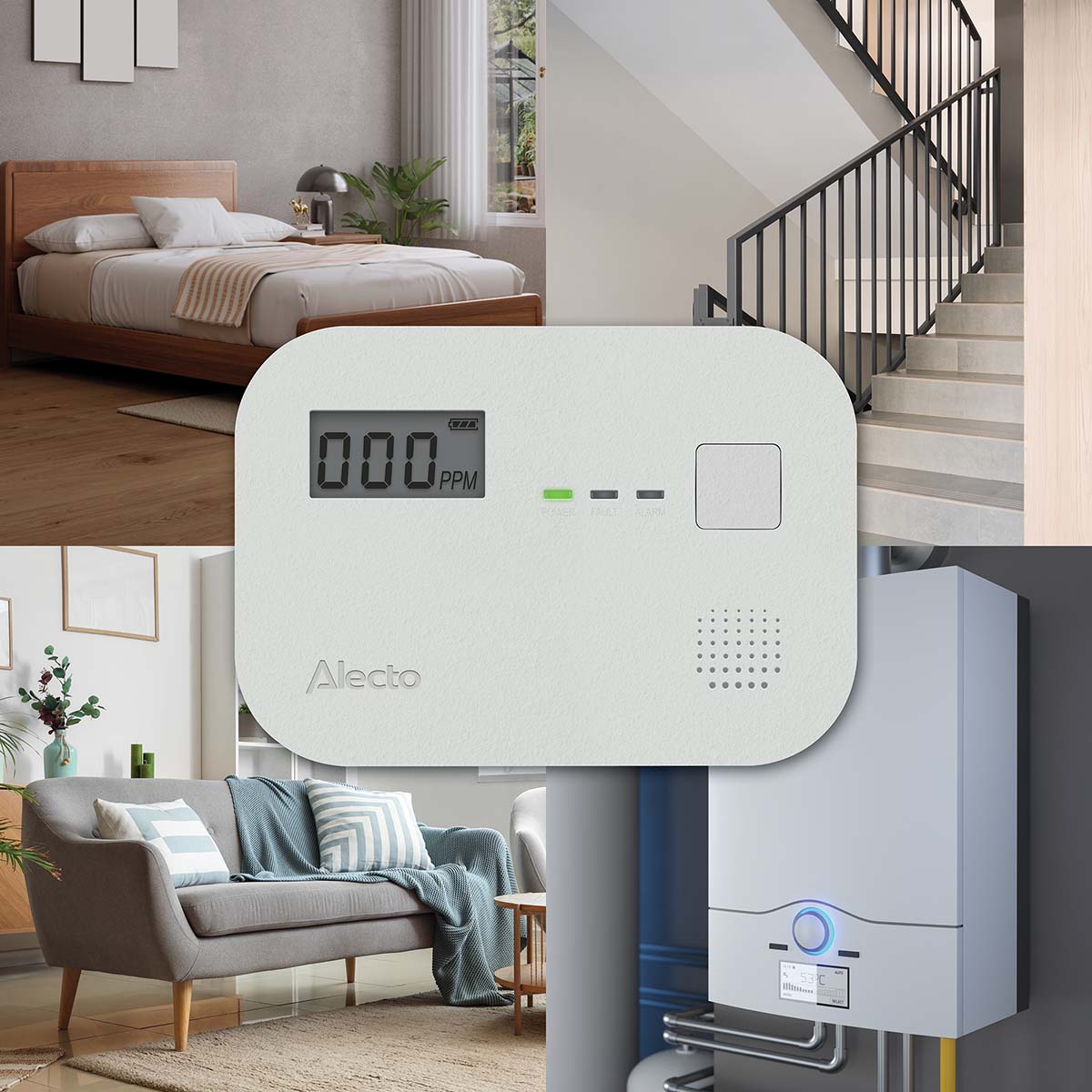

Where to use/place | Bedroom, Garage, Indoor, Living room, Warehouse, Workshop |
Display in screen | Carbon monoxide level from 10 ppm |
Minimum operating temperature range (in degrees Celsius) | -10 degrees Celsius |
Maximum operating temperature range (in degrees Celsius) | 45 degrees Celsius |
Minimum humidity range (in %) | 0% |
Maximum humidity range (in %) | 90% |
Downloads
Onderdelen
Het is een mooi onopvallend apparaatje, maar de gebruiksaanwijzing is alleen leesbaar onder een microscoop. Ook heb ik geen idee wat er bedoeld wordt met "druk de vergrendeling uit de montageplaat"? en "de vergrendeling bovenop in het gat duwen tot je een klik hoort"? Geen touw aan vast te knopen.
Niet helemaal tevreden over de kwaliteit. De batterij van de brandmelder zit veel te los, dus moet je goed vast houden tijdens het bevestigen, anders valt die er uit. Niet heel handig. Bij alledrie de melders het geval.
Als ze eenmaal hangen, werken ze wel.
Installation Instructions do not provide the right action to remove the mounting plate from the front cover. Instructions state to “turn the securing clips inward” this should be
“Slide the mounting plate to the right”
Mounting gas detectors is not an every day job for most users, mare care should be given to provide the right instructions.
Werkt
Geen idee. Vraag dit over een jaar nog eens.
