Pros & Cons
- ✚Accurate NDIR sensor with 10-year lifetime
- ✚Colour indicator for easy interpretation of air quality
- ✚Automatic calibration for reliable measurements
- ✚Measures CO2, temperature and humidity
The Alecto AQ30 CO2 meter is a professional air quality meter that specifically measures the carbon dioxide concentration (CO2) in the air. The CO2 content is a good indication of the air quality in the house, and a measure of good ventilation in rooms where people are present. Good air quality is important for our health and well-being. This CO2 meter gives you insight into the air quality and you’ll know when you should act. It’s perfect for monitoring and creating healthy indoor air at home, school or work.
In addition to the professional CO2’s NDIR sensor, the relative humidity (RH) and temperature are measured. This will help you to always be aware of the indoor climate and know when to ventilate the room.
Key features
- Be made aware when to ventilate the room
- Perfect for preventive monitoring of air quality at home, school, work or at the restaurant
- Create a good living environment with healthy indoor air
- Professional NDIR sensor with a ten-year lifespan
- Long-term accurate and stable NDIR measurements
- ISO Certification EN 61326-1:2013
- Colour indication for air quality (green, orange, red)
High-quality NDIR sensor
The Alecto AQ30 air quality meter has a high-precision NDIR sensor of high quality. This way you are assured of accurate and stable NDIR measurements for a long time. The CO2 meter has the ISO Certification EN 61326-1:2013 and has been developed in accordance with the 2014/30/EU standard. Reliability and safety are paramount.
The AQ30 CO2 meter meets all the requirements described in the Building Decree. Therefore, the CO2 meter functions on electrical mains voltage continuously, calibrates itself automatically and comes with 3 colour codes. It also means the monitor is not wireless. However, it has an integrated back-up battery to protect data when the AQ30 is moved.

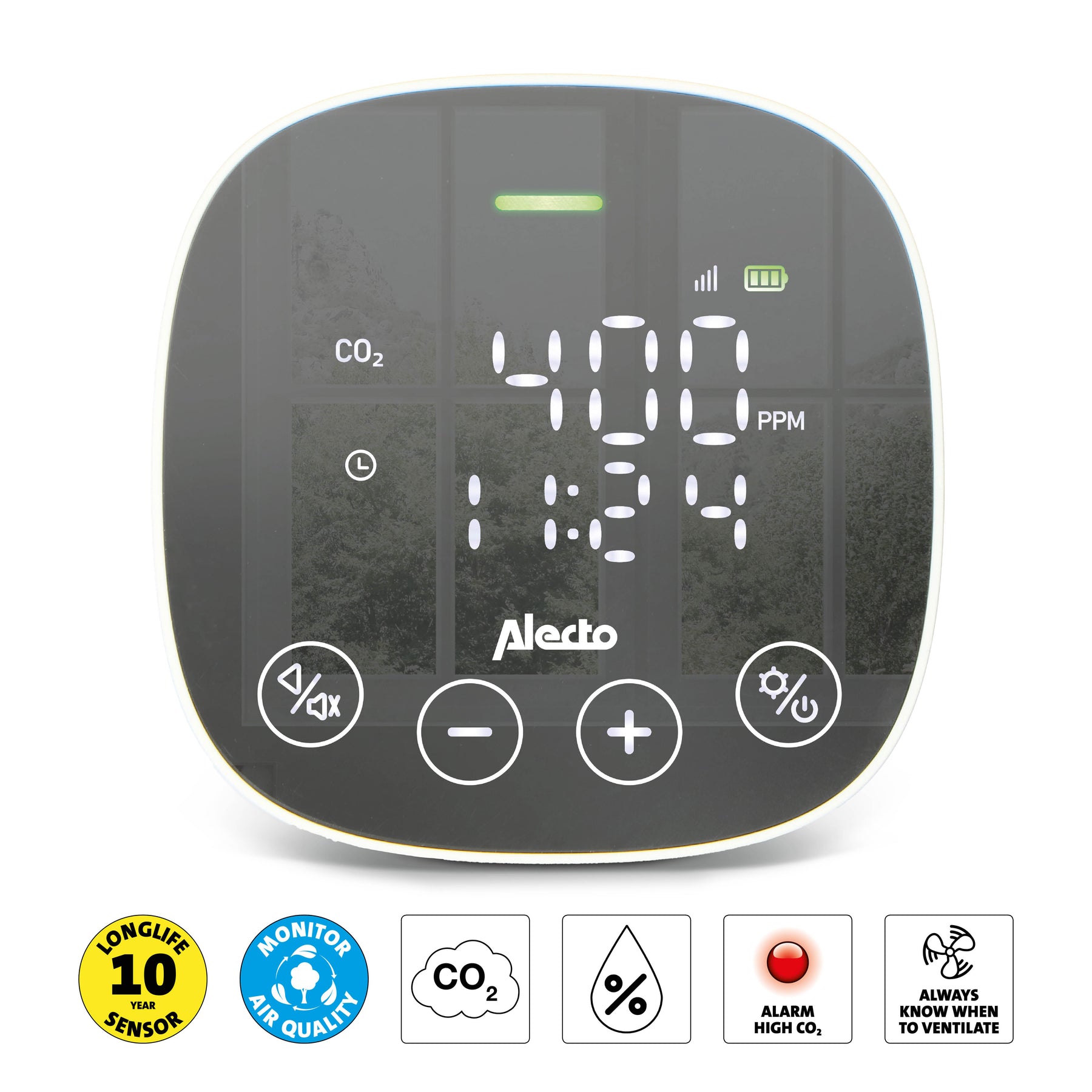

Traffic light colour indicator for air quality

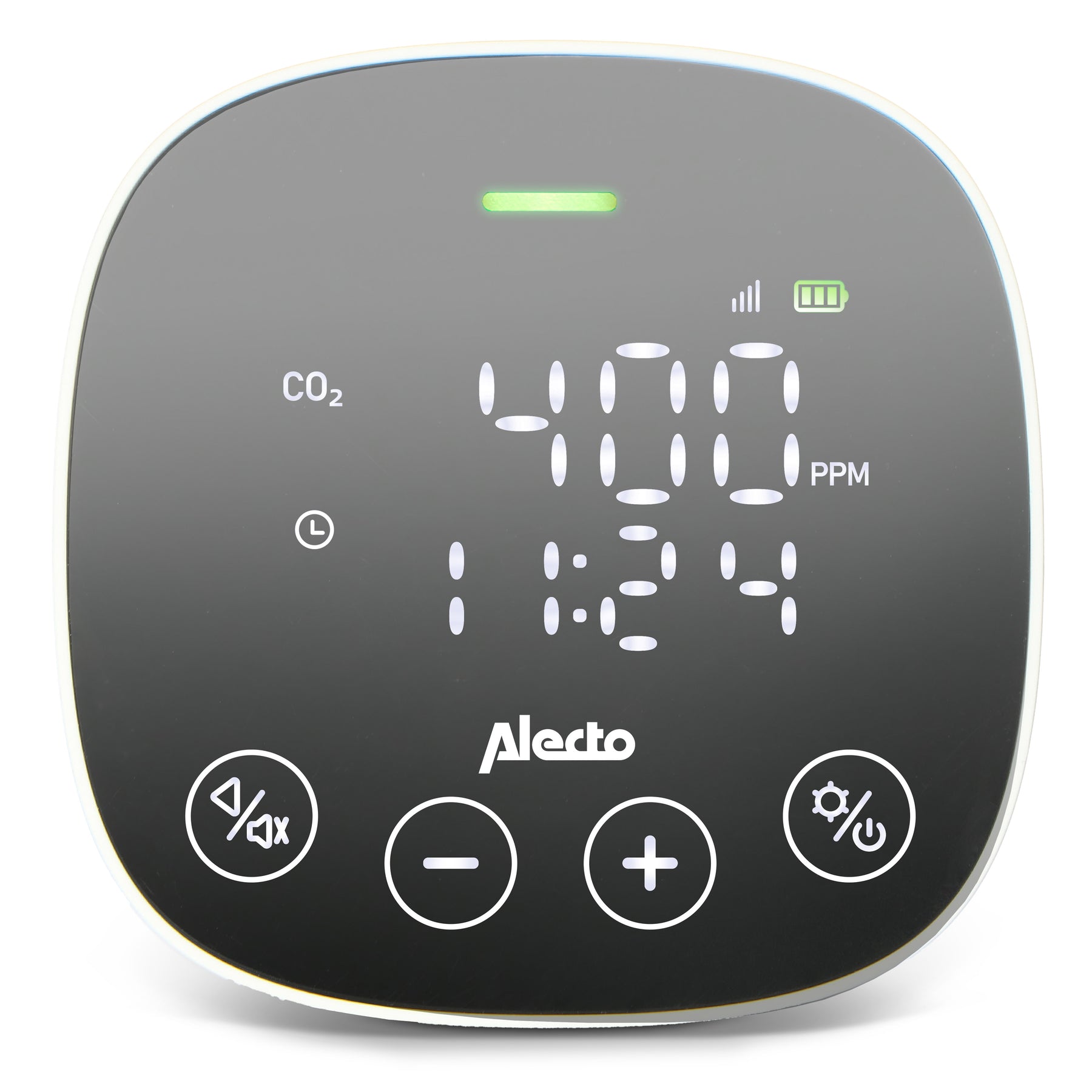

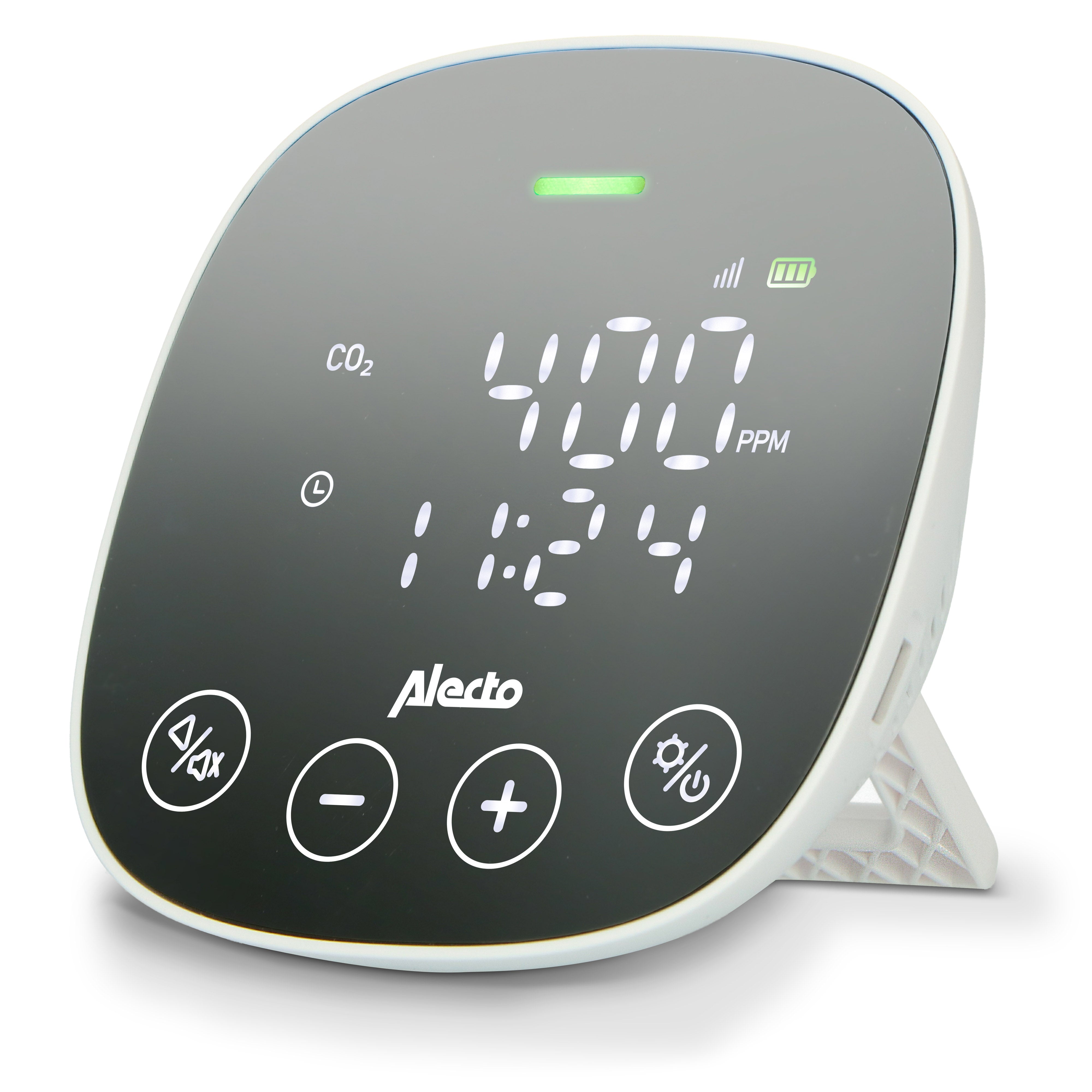

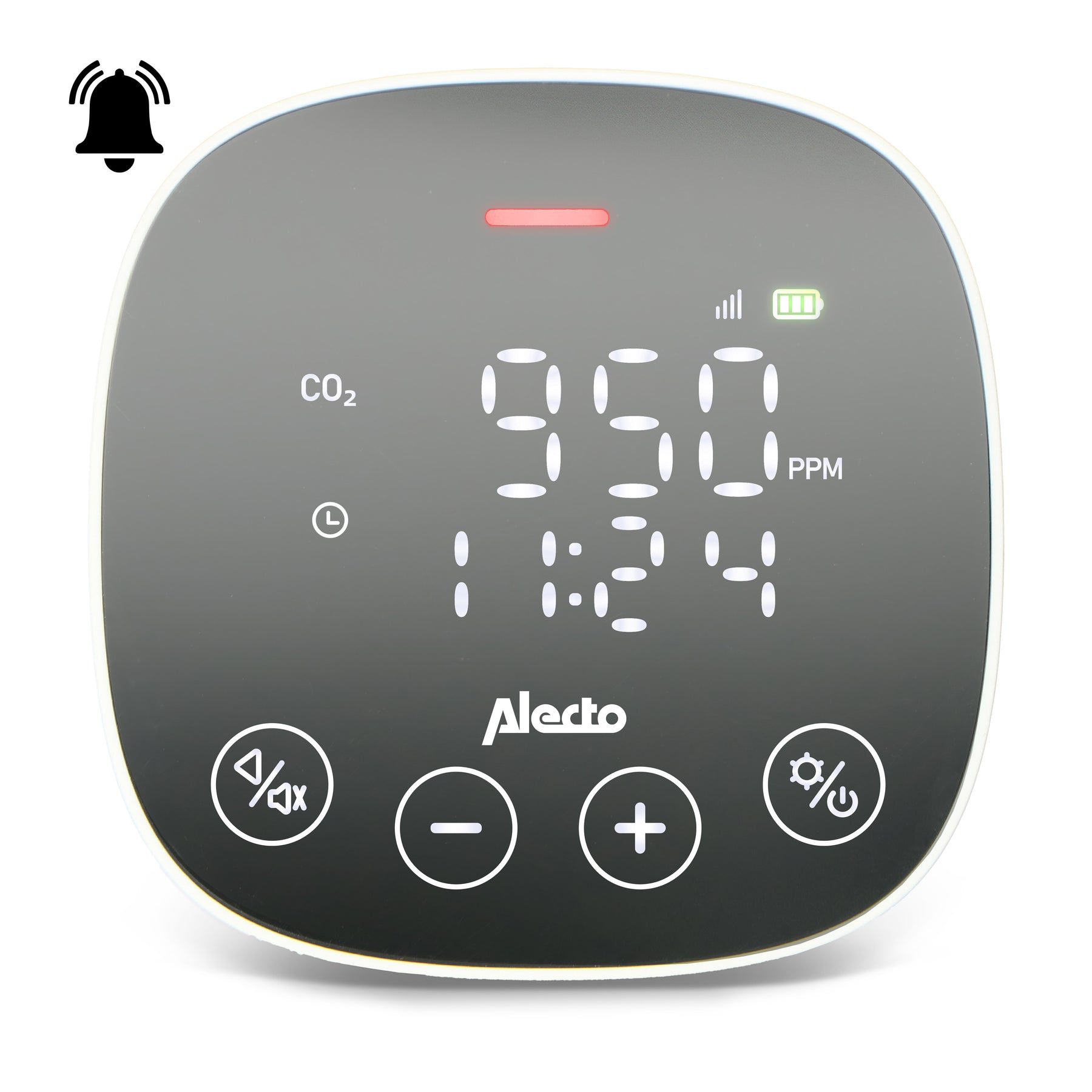

The Alecto AQ30 LCD screen instantly displays the current CO2 content. The useful traffic light colour indicator makes it easy to interpret the values, which are green (OK), orange (room for improvement) and red (too high). If the carbon dioxide content is too high, an alarm goes off. You can set the lower and upper limit, allowing you to decide at what values you want the LED indicator to turn green, orange or red.
CO2 gevaarlijk?
CO2 is niet brandbaar of giftig. Een grote hoeveelheid CO2 kan wel gevolgen hebben voor jouw gezondheid.
Een hoge concentratie CO2 in de ruimte verdringt namelijk de zuurstofopname in ons lichaam. Dit kan voor klachten zorgen zoals vermoeidheid, concentratieverlies, hoofdpijn, droge huid of ogen.
Is CO2 dangerous?
CO2 is not flammable or toxic. However, a large amount of CO2 can have consequences for your health.
A high concentration of CO2 in a room lessens your body’s oxygen intake, which can cause complaints such as fatigue, loss of concentration, headaches and dry skin or eyes.
When there is a lot of CO2, something is wrong with the ventilation. That makes it plausible that other and possibly harmful substances are also present indoors and linger there, such as fungi and particulate matter. Allergies can worsen and the transmission of infectious diseases (colds, flu, coronavirus and the like) can be promoted. Stuffy air is often due to a too much CO2 content.
What is a healthy living environment?
Carbon dioxide (CO2) is measured in parts per million (ppm). A CO2 content of 400 to 800 ppm is ideal. The room is well ventilated. For comparison: In the open air, the average level is approximately 400 ppm. In an unventilated room where people stay, the CO2 content slowly rises due to constant exhalation. A concentration of 800 to 1,000 ppm is acceptable, but ventilation is desirable. 1,200 ppm is the upper limit. A CO2 value above 1,200 ppm is bad, requiring ventilation.
Improving air quality
It is difficult to know if you’re in a good living climate and when you are not. If you notice it yourself, it is often too late! The Alecto AQ30 CO2 meter provides you insight anytime, letting you know when to ventilate. Ventilation is becoming increasingly important, especially as our homes are better insulated. Even though new houses are often equipped with mechanical ventilation, these systems are sometimes turned off because of the noise they make.
When you air out the house with the windows wide open, you will notice that the house’s CO2 content lowers to the value from outside. After closing the windows, however, the value quickly rises again. Especially in the bedroom, the CO2 content can rise to enormous heights at night if the windows/doors and ventilation grilles are kept closed.
Technical features
- Alarm signal in case of poor ventilation (red light)
- Displayed amount of carbon dioxide (CO2) in ppm
- Displayed CO2 and time | Temperature and humidity | Date and time
- Automatic calibration
- Measuring range CO2: 0 - 5000 ppm
- Integrated backup battery (for preserving data while moving)

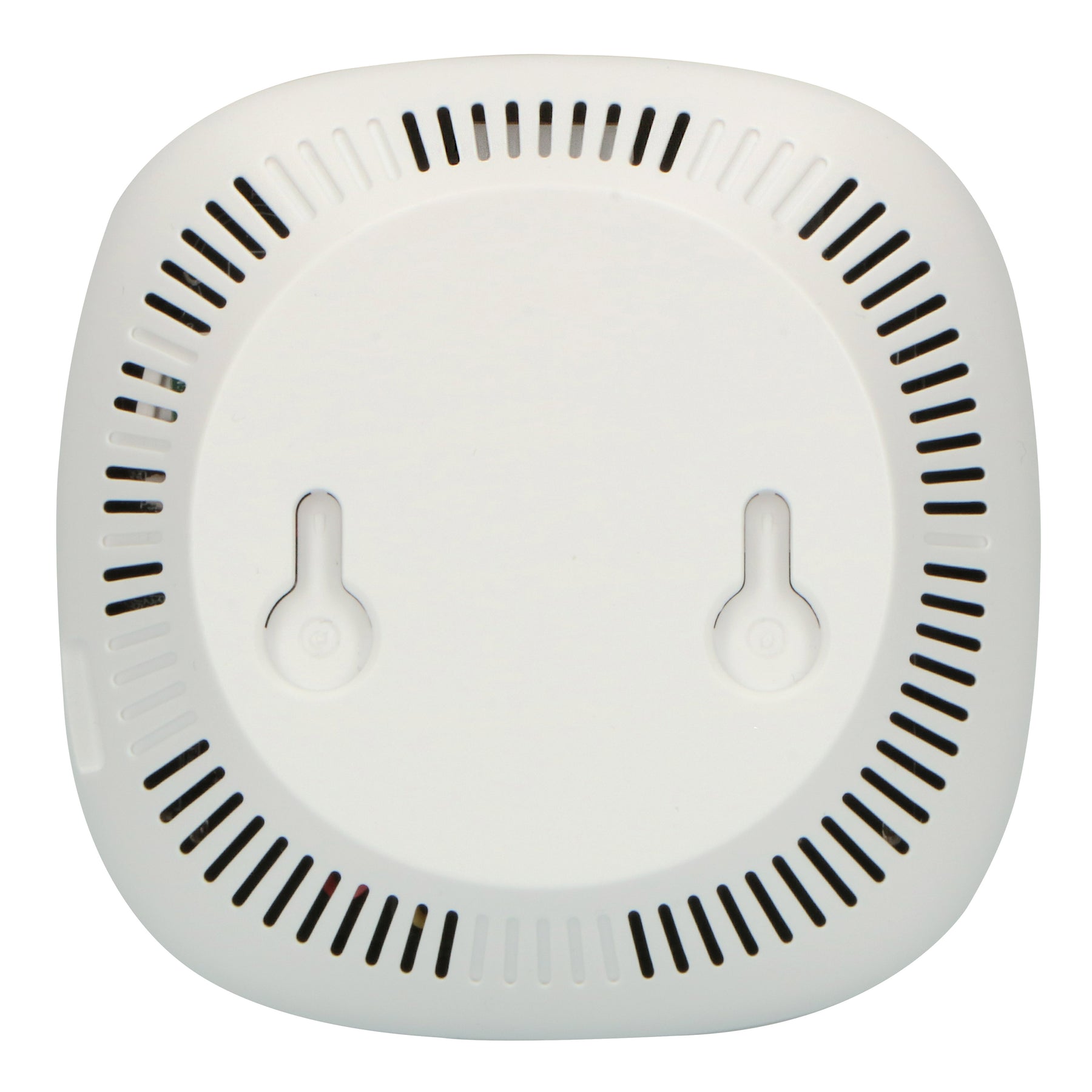

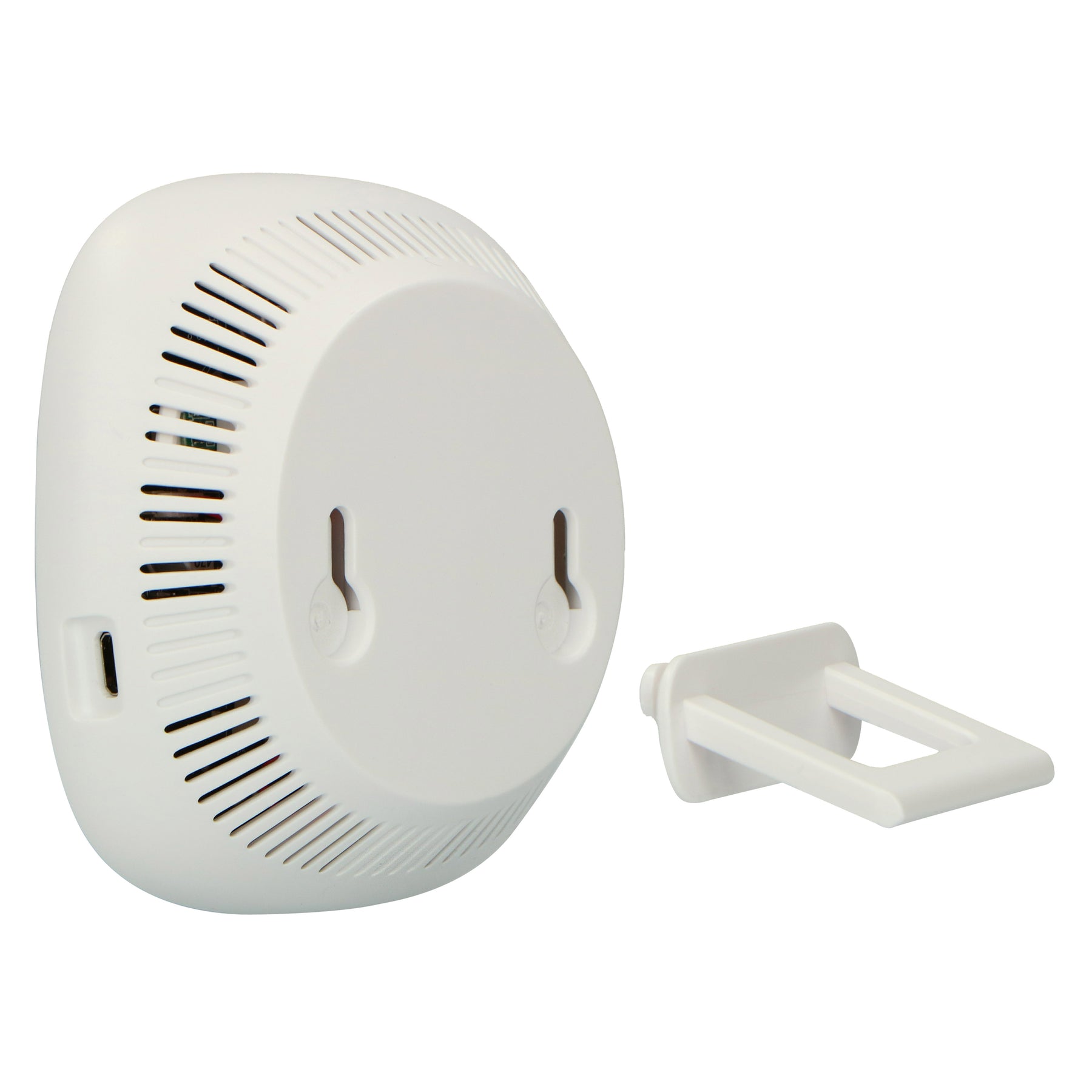

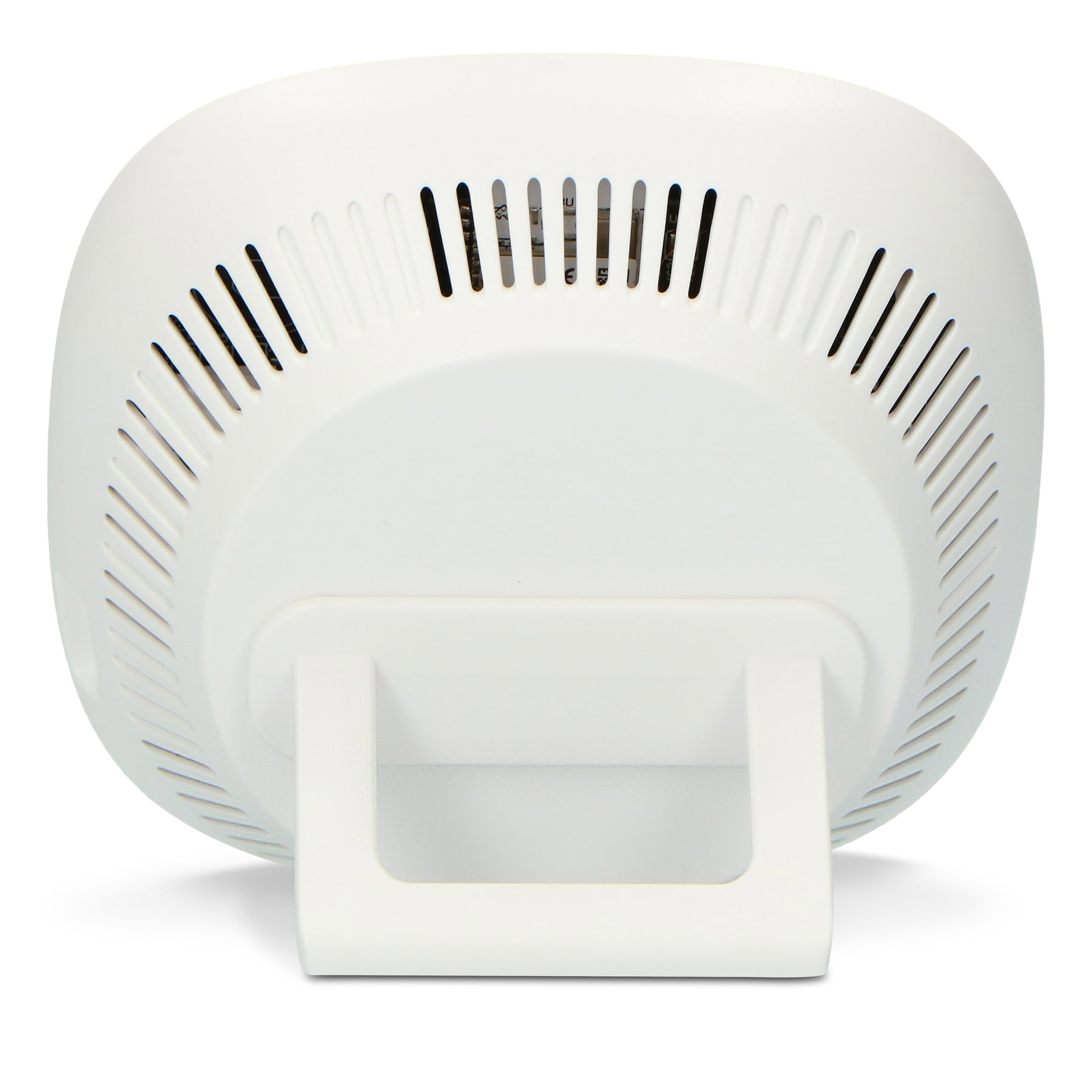

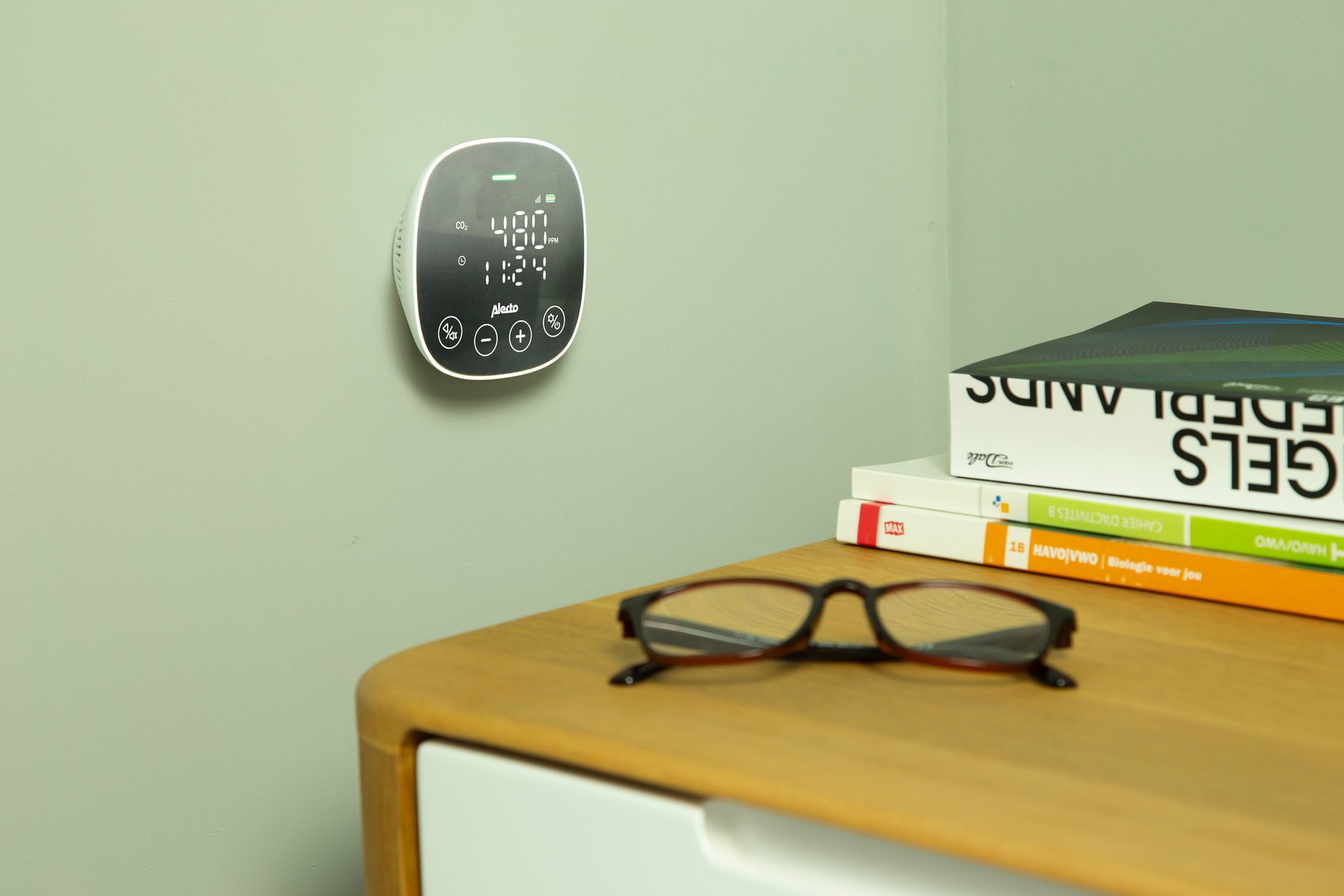

- Suitable for placing or hanging (including stand)
- Dimensions (H x W) 30 x 90 x 90mm (1 x 3.5 x 3.5 inches)
- Works using adapter (included)
What's in the box?
- CO2 meter

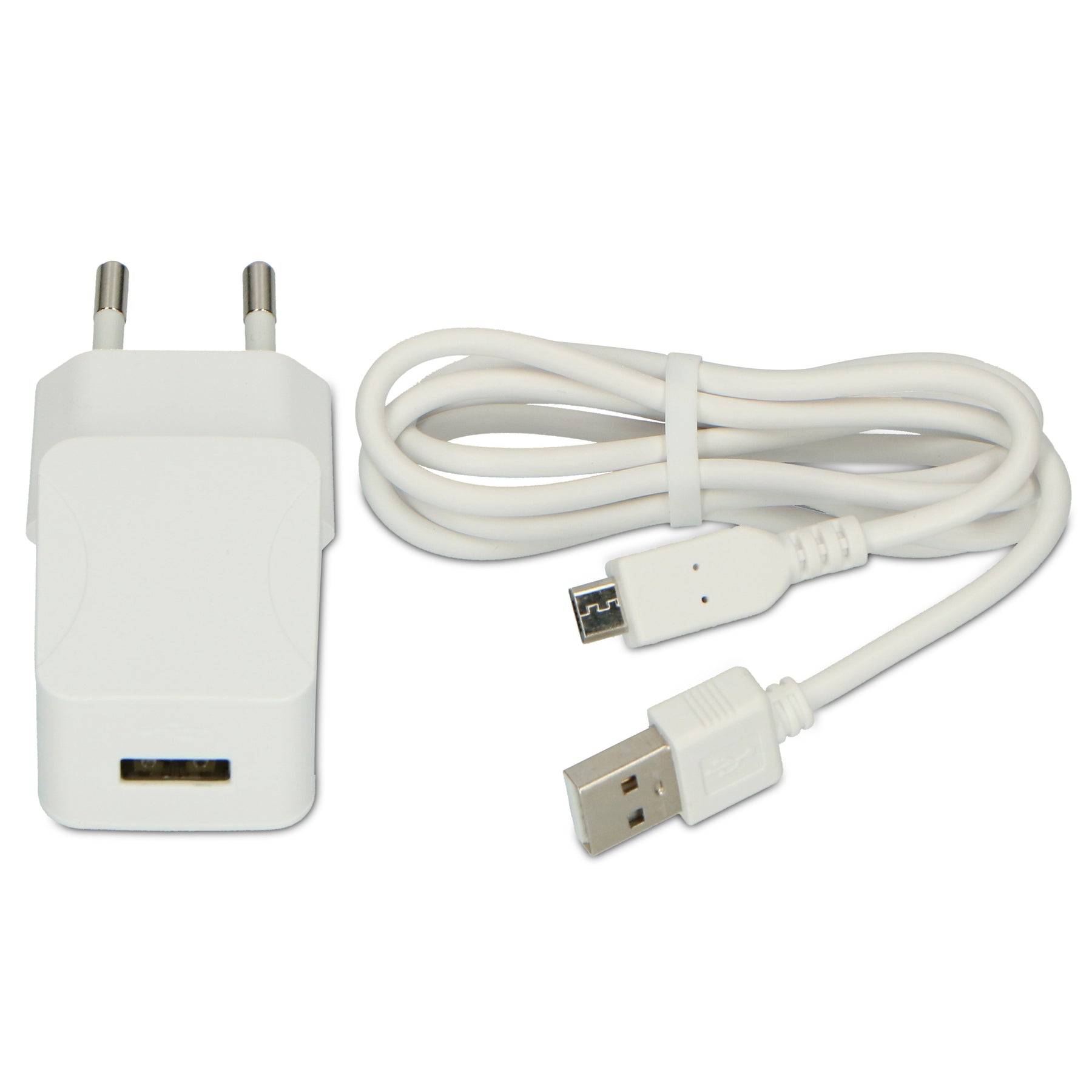

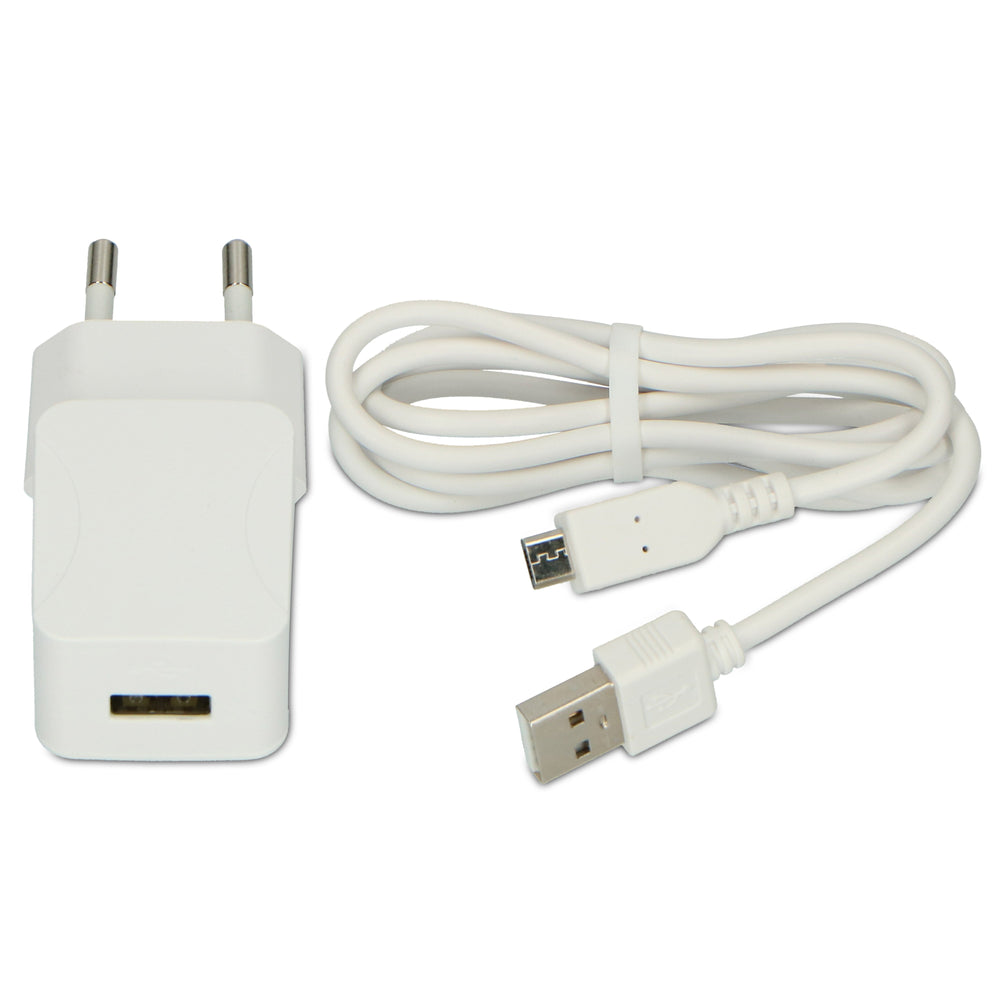

- Adapter
- Charging cable

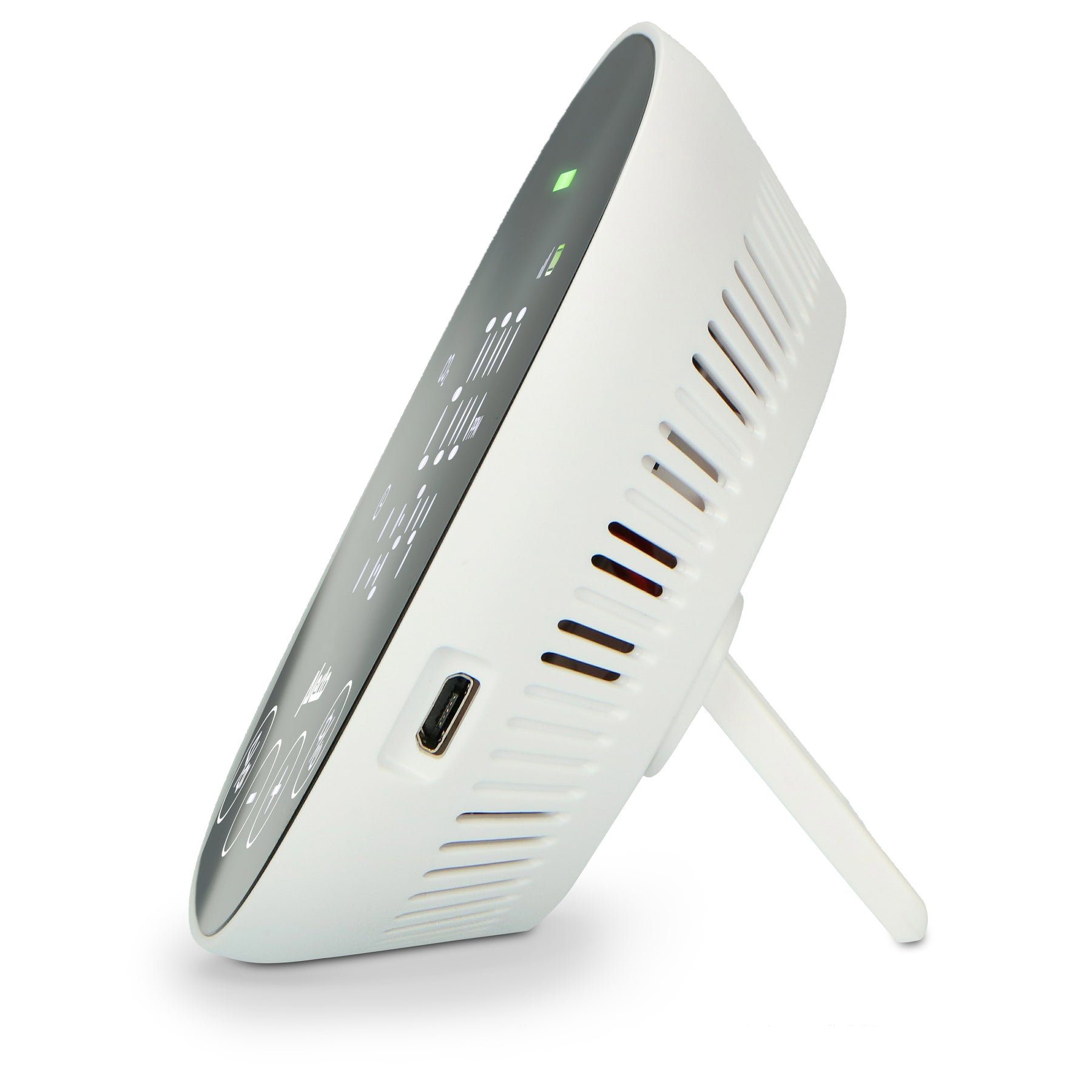

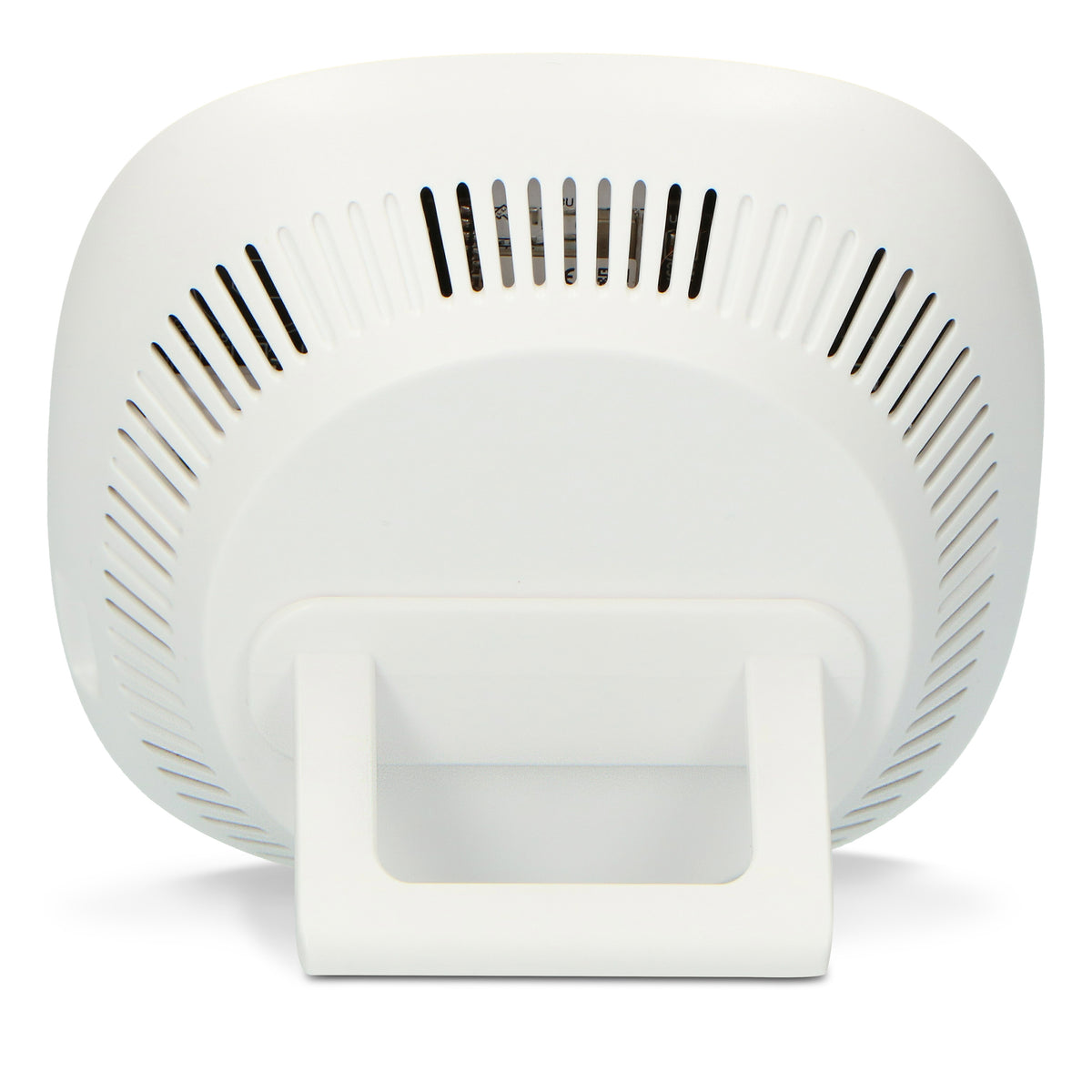

- Desk stand
- User manual NL / EN / DE / FR
| Height | 90 mm |
|---|---|
| Length | 55 mm |
| Width | 90 mm |
| Weight | 100 g |
| Air quality fine dust particles in pm2.5 | No |
| Air quality indicator with emoticons | No |
| Air quality meter | Yes |
| Alarm signal strength | 77.0000dB |
| Alarm signal type | Audible signal |
| Alert/notification types | Buzzer |
| Audible warning detection high concentration CO2 | Yes |
| Auto time sync | No |
| Automatic calibration | Yes |
| Backlight display | Various colours |
| Barometer air pressure in pascal | No |
| Batteries included | Yes |
| Battery 1 capacity | 1000mAh |
| Battery 1 Cells per battery (in case of a pack) | 1pcs |
| Battery 1 chemical composition | Li-Poly |
| Battery 1 Hazmat | No |
| Battery 1 included | Yes |
| Battery 1 Lithium weight in case of a Lithium-metal battery | 18g |
| Battery 1 max charging time | 300min |
| Battery 1 rechargeable | Yes |
| Battery 1 replaceable / built-in | Built-in |
| Battery 1 type | Battery pack |
| Battery 1 usage for (main function product) | Main product |
| Battery 1 voltage | 3.7V |
| Battery 1 Watt hour in case of Lithium-Ion battery | 3.70Wh |
| Battery 1 weight | 20g |
| Battery 2 capacity | 37mAh |
| Battery 2 chemical composition | Lithium-metal |
| Battery 2 Hazmat | No |
| Battery 2 included | Yes |
| Battery 2 rechargeable | No |
| Battery 2 replaceable / built-in | Built-in |
| Battery 2 type | Battery pack |
| Battery 2 usage for | Not applicable |
| Battery 2 voltage | 3V |
| Battery 2 weight | 0.80g |
| Battery life time 10 years | No |
| Carbon dioxide meter co2 in ppm | Yes |
| Charging with solar cel | No |
| Colour | White |
| Communication technology | Not applicable |
| Connectable | No |
| Detection | Carbon dioxide (CO2) |
| Detection technology | Optical |
| Detector type | Carbon Monoxide (CO) |
| Dimmable display | No |
| Display | Yes |
| Display colour | Black |
| Display in screen | Date, Humidity Display (in %), Temperature, Time, CO2 in ppm, CO2 in ppm |
| Display size | 4" |
| Display type | LCD |
| Electronic anti-theft security tags required | No |
| Emergency light | No |
| Fingerprint proof display | No |
| Hush / mute function | No |
| Hygrometer | Yes |
| Hygrometer humidity in percentage | Indoor |
| Material | Plastic |
| Maximum detection range | 5000 ppmppm |
| Maximum humidity range | 95% |
| Maximum number connectable | Not applicable |
| Measurement relative humidity rh | Yes |
| Minimum detection range | 0 ppmppm |
| Minimum humidity range | 0%% |

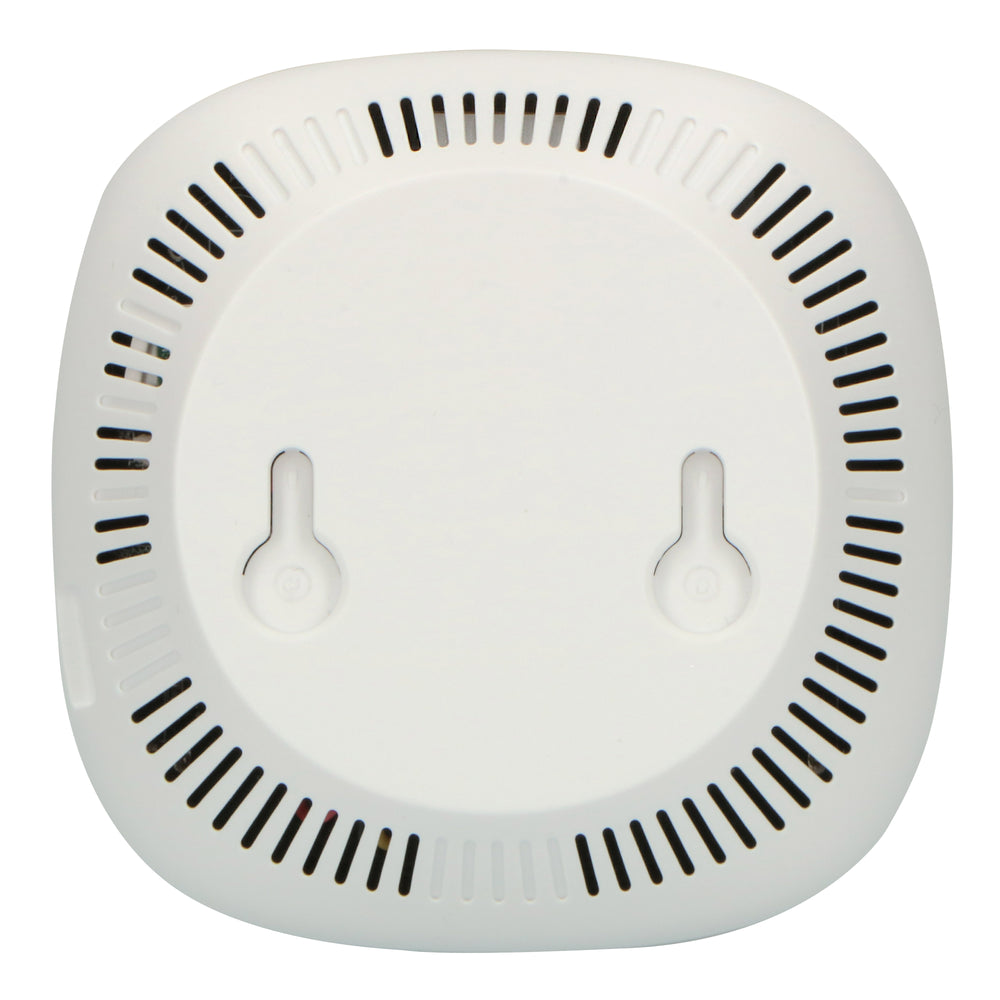

| Mounting system | Screw Mounting |
| Number of batteries 1 | 1 |
| Number of batteries 2 | 1 |
| Number of Products in Package | 1pcs |
| On Screen Display (OSD) | Not applicable |
| Operating temperature range | -10 - 50°C |
| Power source type | Battery Powered |
| Required batteries (included) | 1x Li-ion Batterypack |
| Screen diagonal | 10cm |
| Sensor life cycle | 10year |
| Sensor life time 10 years | Yes |
| SmartLife | No |
| Sound | 85dB |
| Suitable for magnetic mounting | No |
| Thermometer (temperature) | Yes |
| Thermometer temperature | Indoor |
| Time-out/ pause function | No |
| Touchscreen | Yes |
| Traffic light colour indicator air quality | Yes |
| UN38.3 applicable / Product has a lithium ion battery | Yes |
| Unit of temperature display | Celsius |
| Where to use/place | Bedroom, Boat, Caravan / Motor home, Garage, Indoor, Kitchen, Living room, Mobile, Workshop |
| With pause button | Yes |
| With test button | No |
